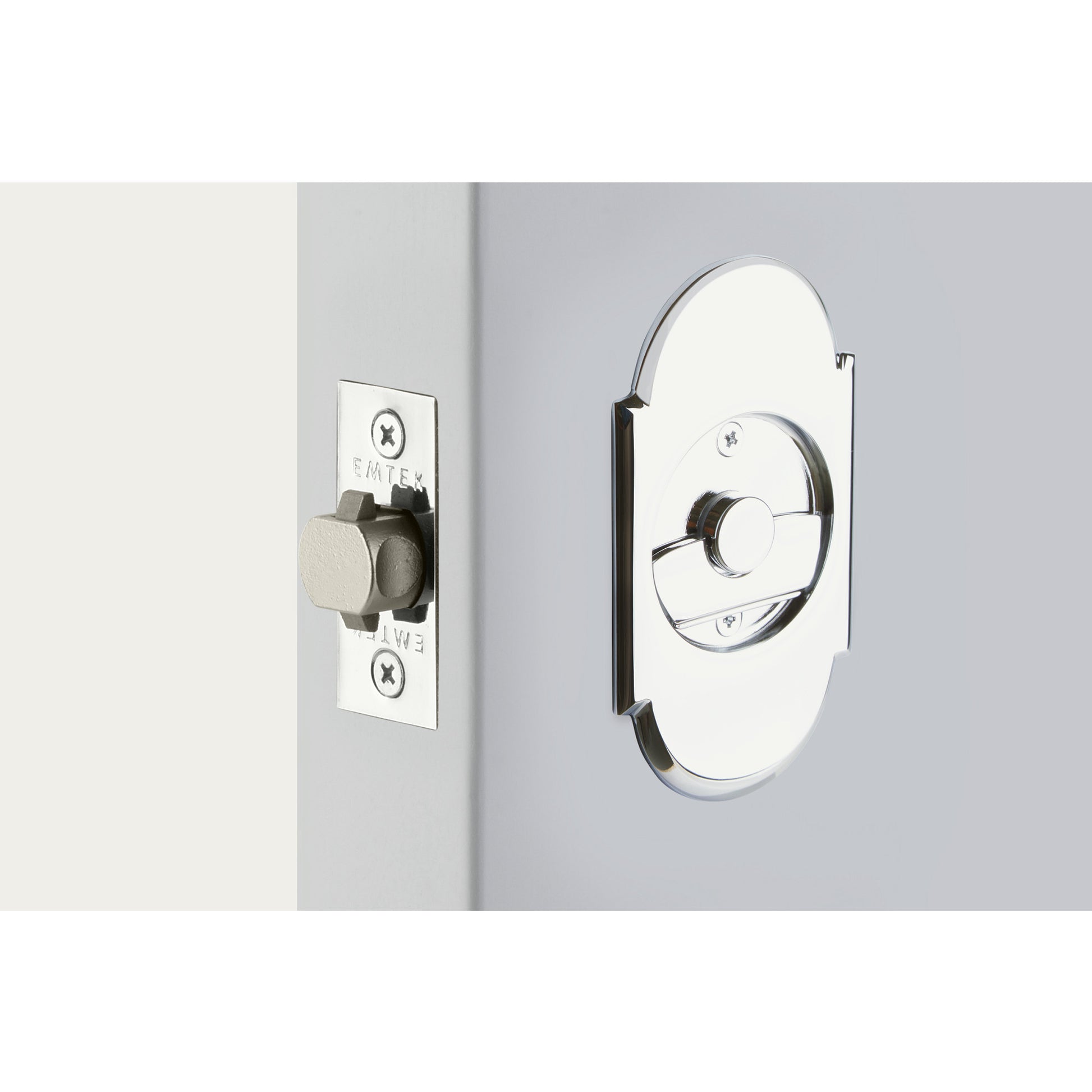

#8 Pocket Door Tubular Lock

The #8 Pocket Door Tubular Lock is a solid-brass pocket door tubular lock for sliding and pocket doors, available in 10 finishes and passage, privacy, dummy functions. Its trim sits flush to the door face so the panel glides cleanly into the pocket. Each set ships complete with finish-matching hardware.

• Trim size: 2-1/2" x 4-3/8"
• Functions: Passage, Privacy, Dummy
• Complete tubular set with pop-out edge pull, strike plate, and finish-matching screws. Privacy adds a dust box. Dummy (double-door) supplied with edge pull.
• Fits 1-3/8" to 1-3/4" doors; standard 2-1/8" prep, 2-3/8" backset.
• Handing not required
• Unlacquered Brass (US3NL) available at a $20 list upcharge per item

Documentation:
Download spec sheet (PDF)
Download installation guide (PDF)
