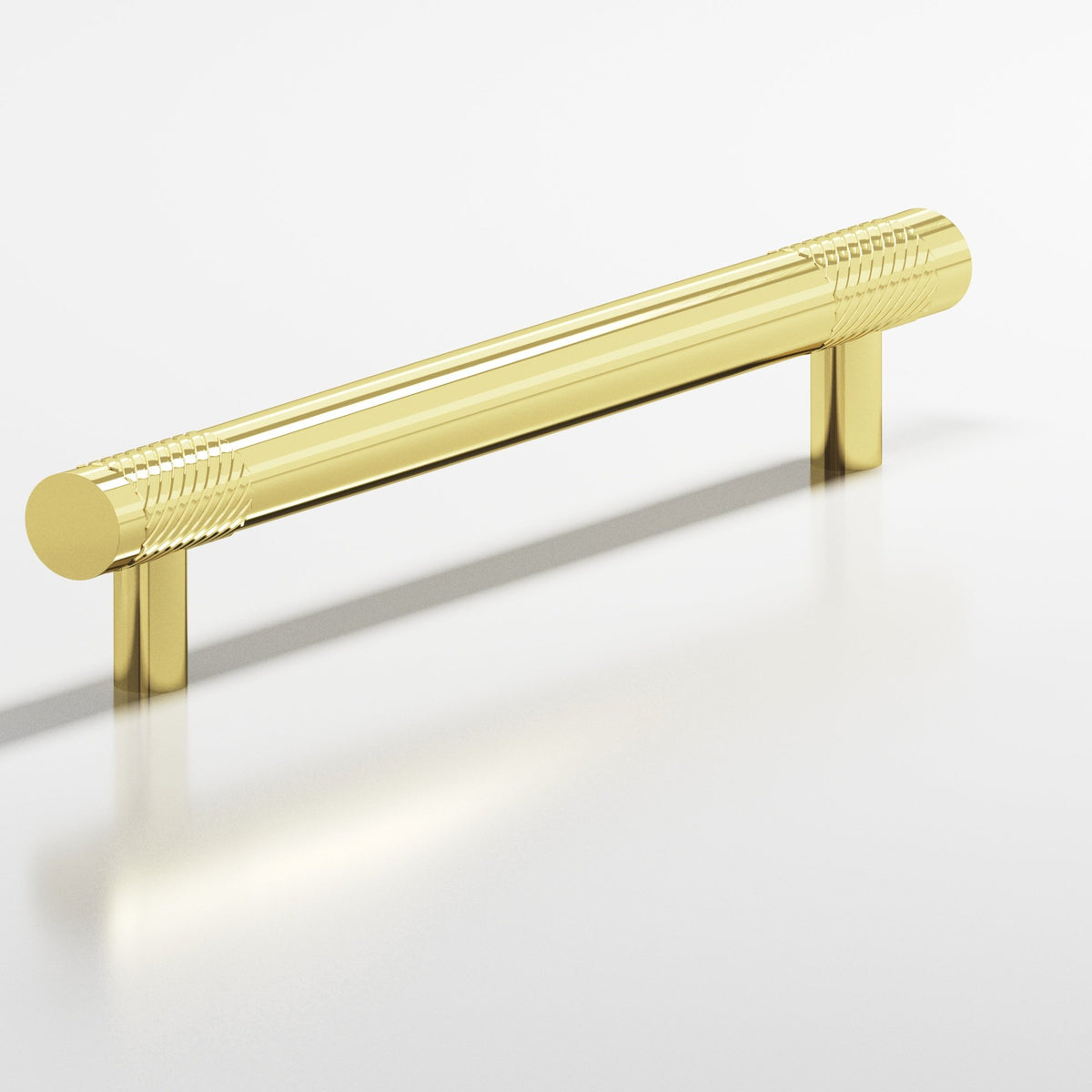

The Colonial Bronze 566 Banded Single-Knurl Pull with Straight Posts, 1 in Diameter is handcrafted by Colonial Bronze in Torrington, Connecticut, from 94% recycled brass and hand finished to order. Available in 47 finishes and 8 sizes.
- This product is available in all of Colonial Bronze's hand-worked finishes.
- This product is hand-crafted in the USA.
- Colonial Bronze's products are certified GREEN by SCSGlobal.
Product Details
| Series | 545 |
| Application | Cabinet Pull, Appliance Pull, Door Pull, Shower Door Pull, Back-to-Back Shower Door Pull Kit |
| Material | 94% Recycled Brass |
| Sold As | Each |
| Mounting Hardware | x2 1/4-20 screws |
| Warranty | Finishes for Life |
| Lead Time | Made to order, approx. 4 weeks plus transit |
| Made In | Torrington, CT, USA |
| Finishes Available | 47 |
Dimensions
| Size | Item # | Center to Center | Overall Length | Diameter / Cross Section | Projection | Weight |
|---|---|---|---|---|---|---|
| 10 in (254mm) | 566-10 | 10" | 14" | 1" | 2-1/8" | 3.21 lbs |
| 12 in (304.8mm) | 566-12 | 12" | 16" | 1" | 2-1/8" | 3.63 lbs |
| 18 in (457.2mm) | 566-18 | 18" | 22" | 1" | 2-1/8" | 4.9 lbs |
| 24 in (609.6mm) | 566-24 | 24" | 28" | 1" | 2-1/8" | 6.16 lbs |
| 10 in (254mm) Back-to-Back Kit | 566BB-10 | 10" | 14" | 1" | 2-1/8" | 6.45 lbs |
| 12 in (304.8mm) Back-to-Back Kit | 566BB-12 | 12" | 16" | 1" | 2-1/8" | 7.29 lbs |
| 18 in (457.2mm) Back-to-Back Kit | 566BB-18 | 18" | 22" | 1" | 2-1/8" | 9.83 lbs |
| 24 in (609.6mm) Back-to-Back Kit | 566BB-24 | 24" | 28" | 1" | 2-1/8" | 12.35 lbs |

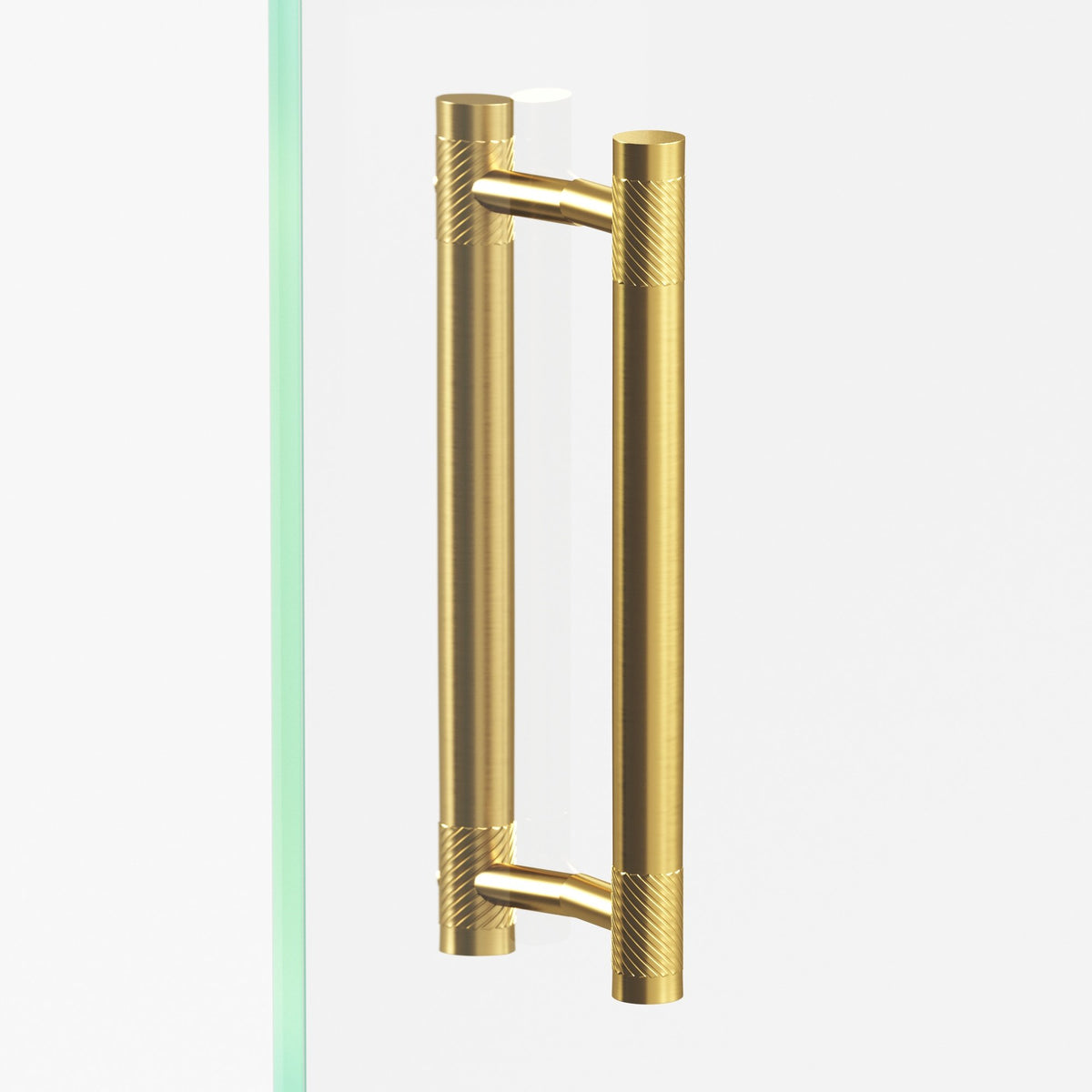

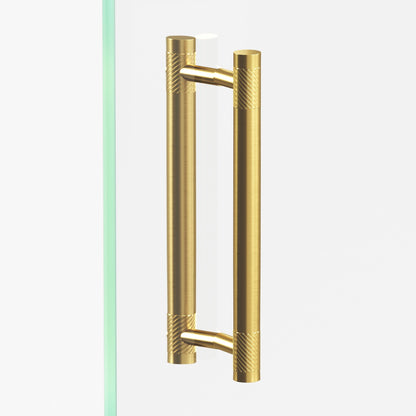

Back-to-Back Kits mount on 3/8" and 1/2" thick glass doors and include x2 1/4-20 x 1-1/4" screws with protective rubber bushings and washers.
Download Specification Sheet (PDF)
Measurements are approximate and should be used as guidelines only.
