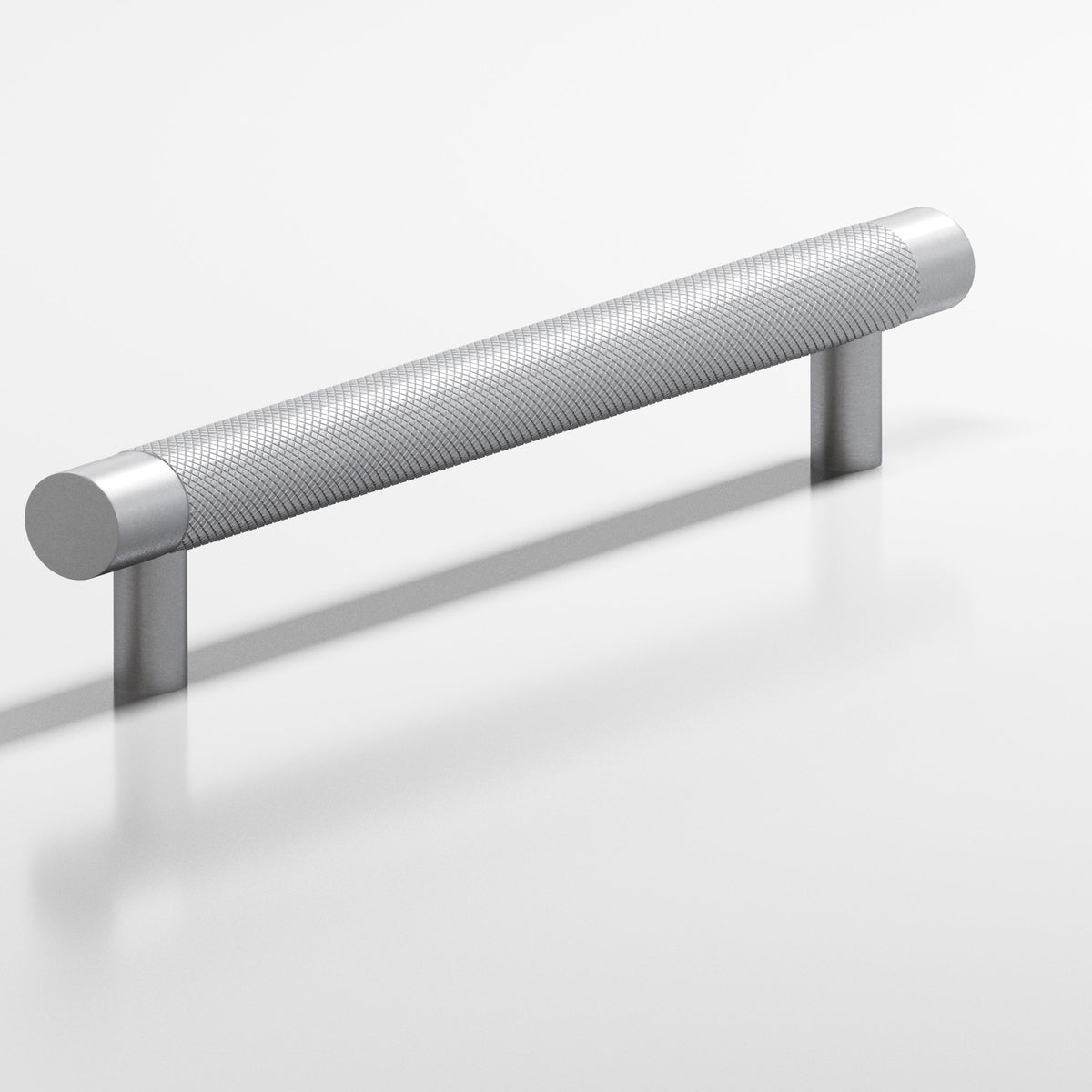

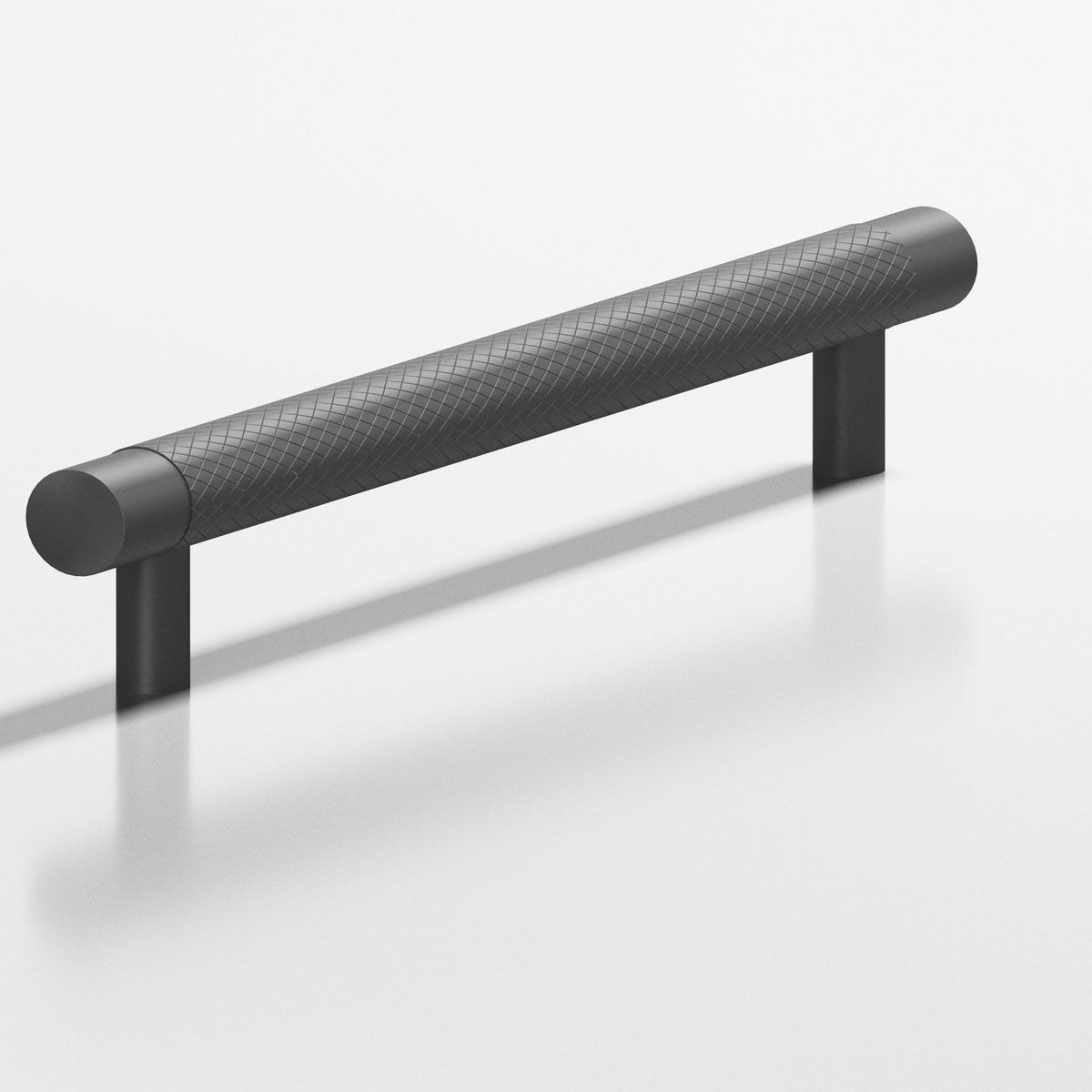

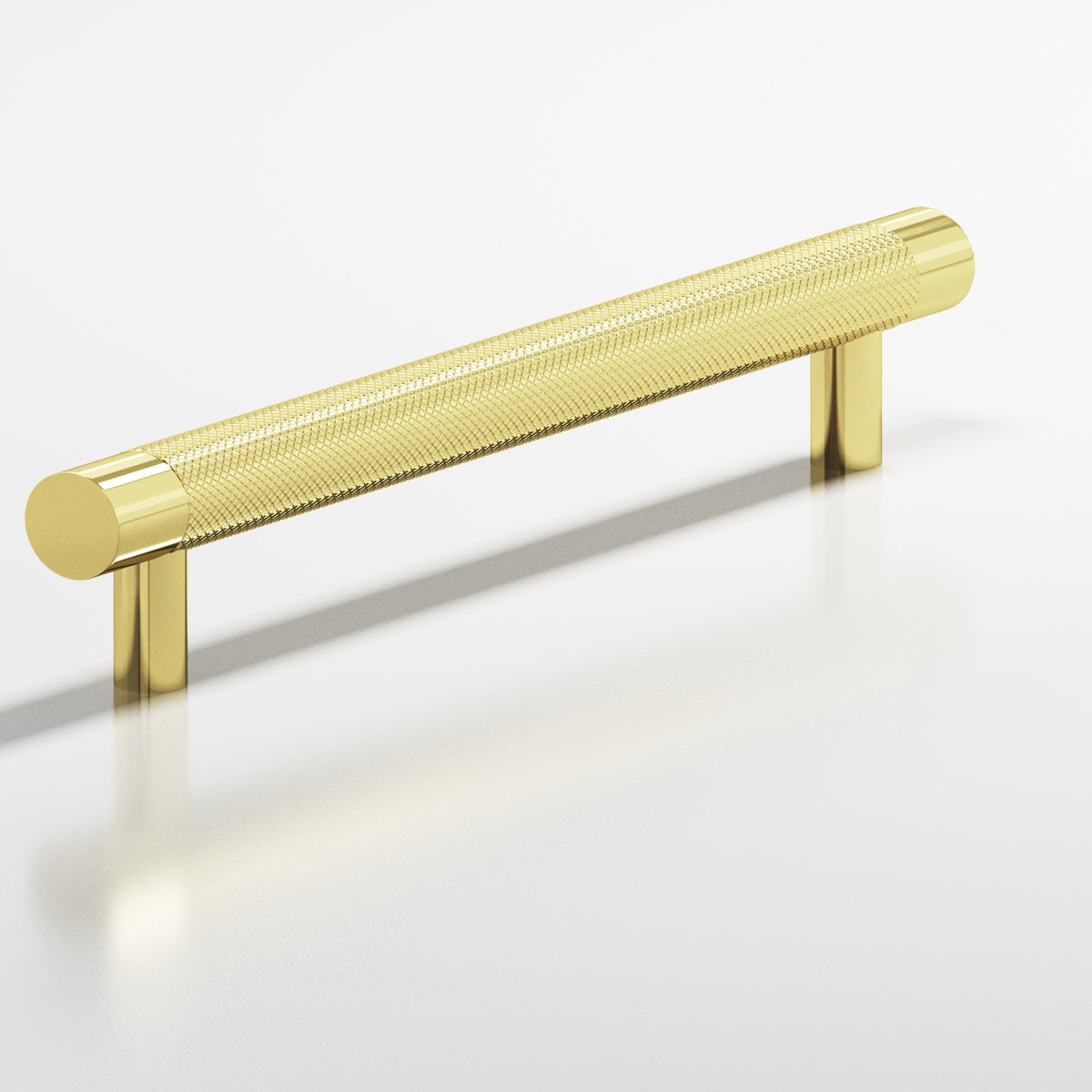

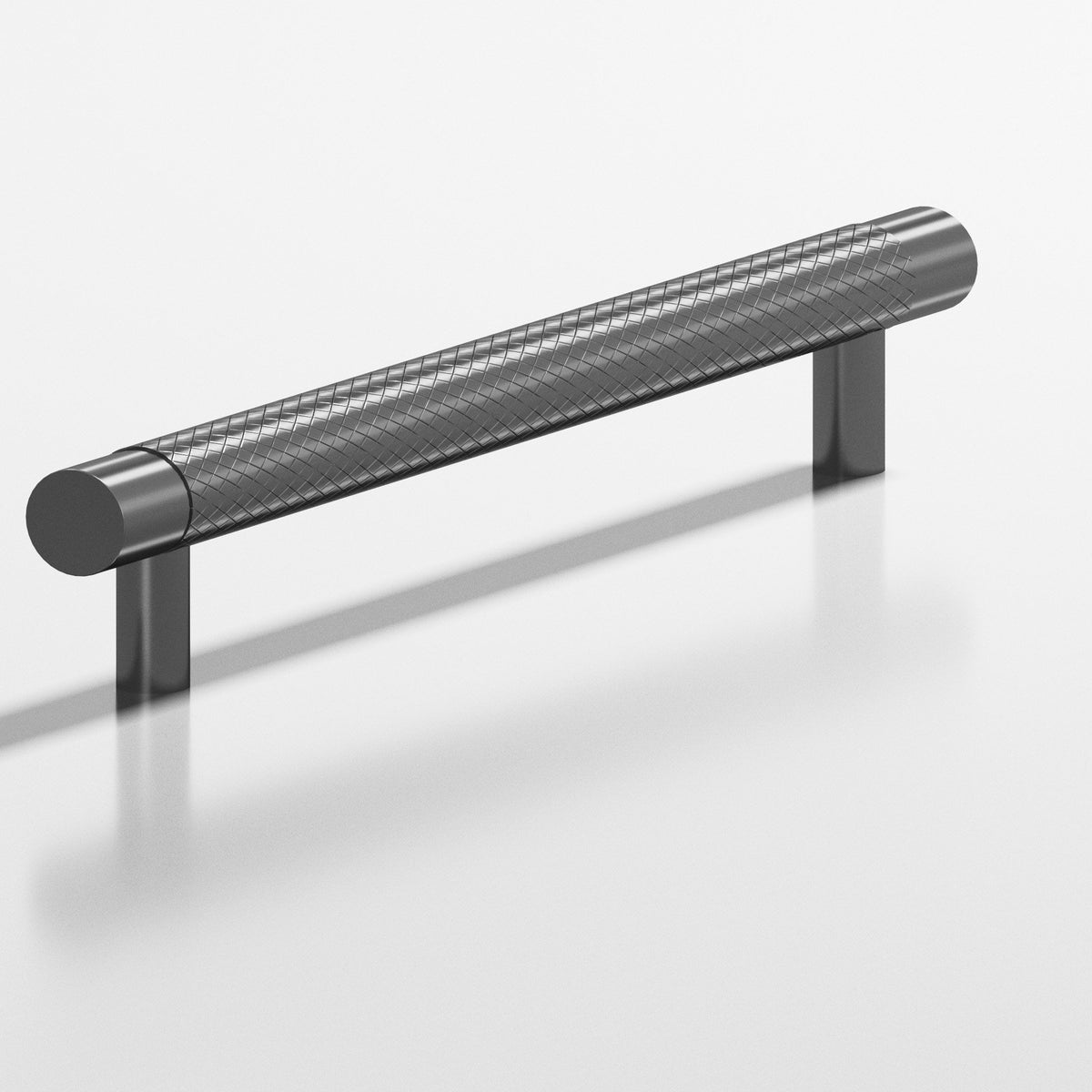

The Colonial Bronze 565 Diamond-Knurl Pull with Straight Posts, 3/4 in Diameter is handcrafted by Colonial Bronze in Torrington, Connecticut, from 94% recycled brass and hand finished to order. Available in 47 finishes and 8 sizes.
- This product is available in all of Colonial Bronze's hand-worked finishes.
- This product is hand-crafted in the USA.
- Colonial Bronze's products are certified GREEN by SCSGlobal.
Product Details
| Series | 563 |
| Application | Cabinet Pull, Appliance Pull, Door Pull, Shower Door Pull, Back-to-Back Shower Door Pull Kit |
| Material | 94% Recycled Brass |
| Sold As | Each |
| Mounting Hardware | x2 8-32 screws |
| Warranty | Finishes for Life |
| Lead Time | Made to order, approx. 4 weeks plus transit |
| Made In | Torrington, CT, USA |
| Finishes Available | 47 |
Dimensions
| Size | Item # | Center to Center | Overall Length | Diameter / Cross Section | Projection | Weight |
|---|---|---|---|---|---|---|
| 6 in (152.4mm) | 565-6 | 6" | 8" | 3/4" | 1-1/2" | 1.16 lbs |
| 8 in (203.2mm) | 565-8 | 8" | 10" | 3/4" | 1-1/2" | 1.43 lbs |
| 10 in (254mm) | 565-10 | 10" | 12" | 3/4" | 1-1/2" | 1.69 lbs |
| 12 in (304.8mm) | 565-12 | 12" | 14" | 3/4" | 1-1/2" | 1.95 lbs |
| 6 in (152.4mm) Back-to-Back Kit | 565BB-6 | 6" | 8" | 3/4" | 1-1/2" | 2.34 lbs |
| 8 in (203.2mm) Back-to-Back Kit | 565BB-8 | 8" | 10" | 3/4" | 1-1/2" | 2.88 lbs |
| 10 in (254mm) Back-to-Back Kit | 565BB-10 | 10" | 12" | 3/4" | 1-1/2" | 3.4 lbs |
| 12 in (304.8mm) Back-to-Back Kit | 565BB-12 | 12" | 14" | 3/4" | 1-1/2" | 3.92 lbs |

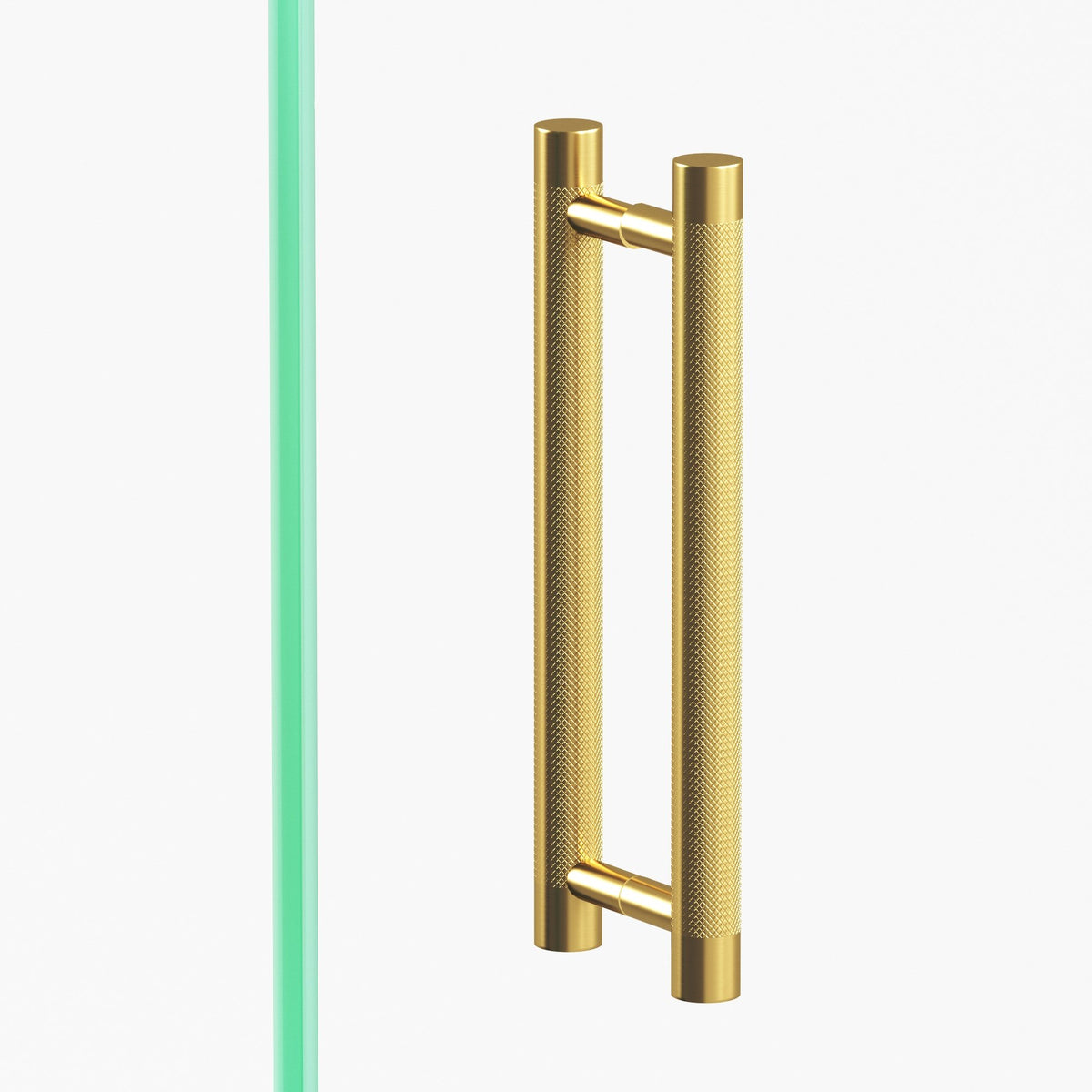

Back-to-Back Kits mount on 3/8" and 1/2" thick glass doors and include x2 8-32 x 1-1/4" screws with protective rubber bushings and washers.
Download Specification Sheet (PDF)
Measurements are approximate and should be used as guidelines only.
