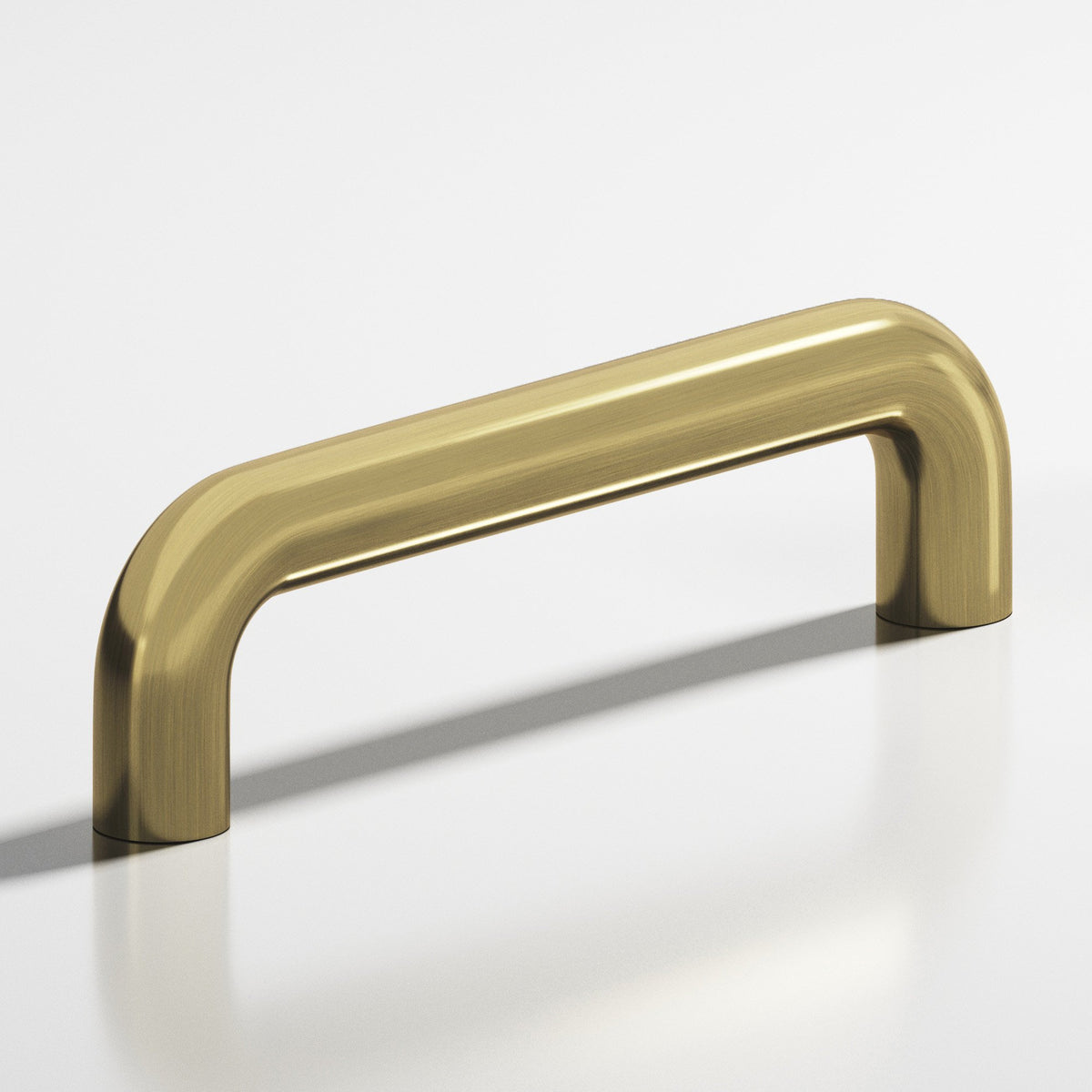

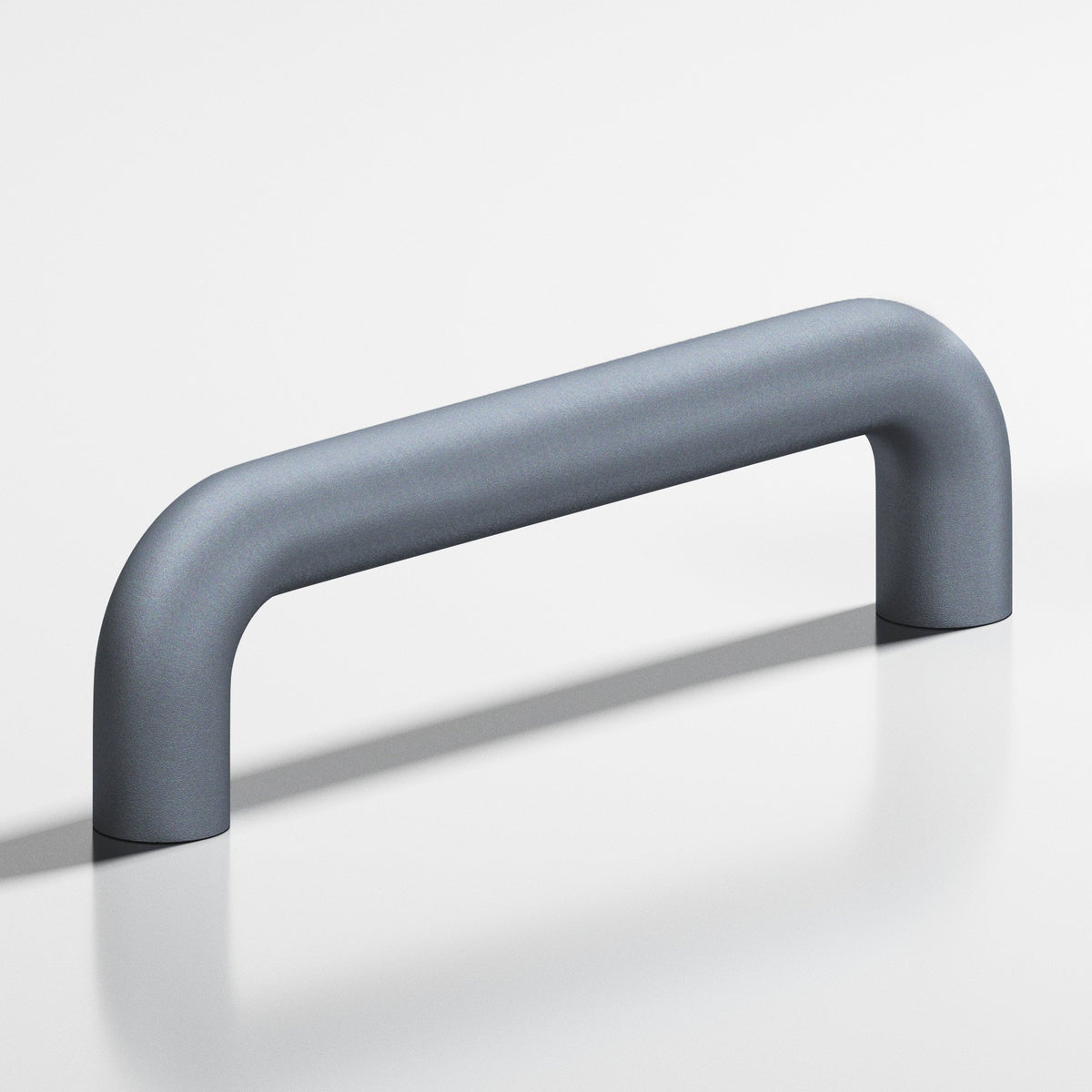

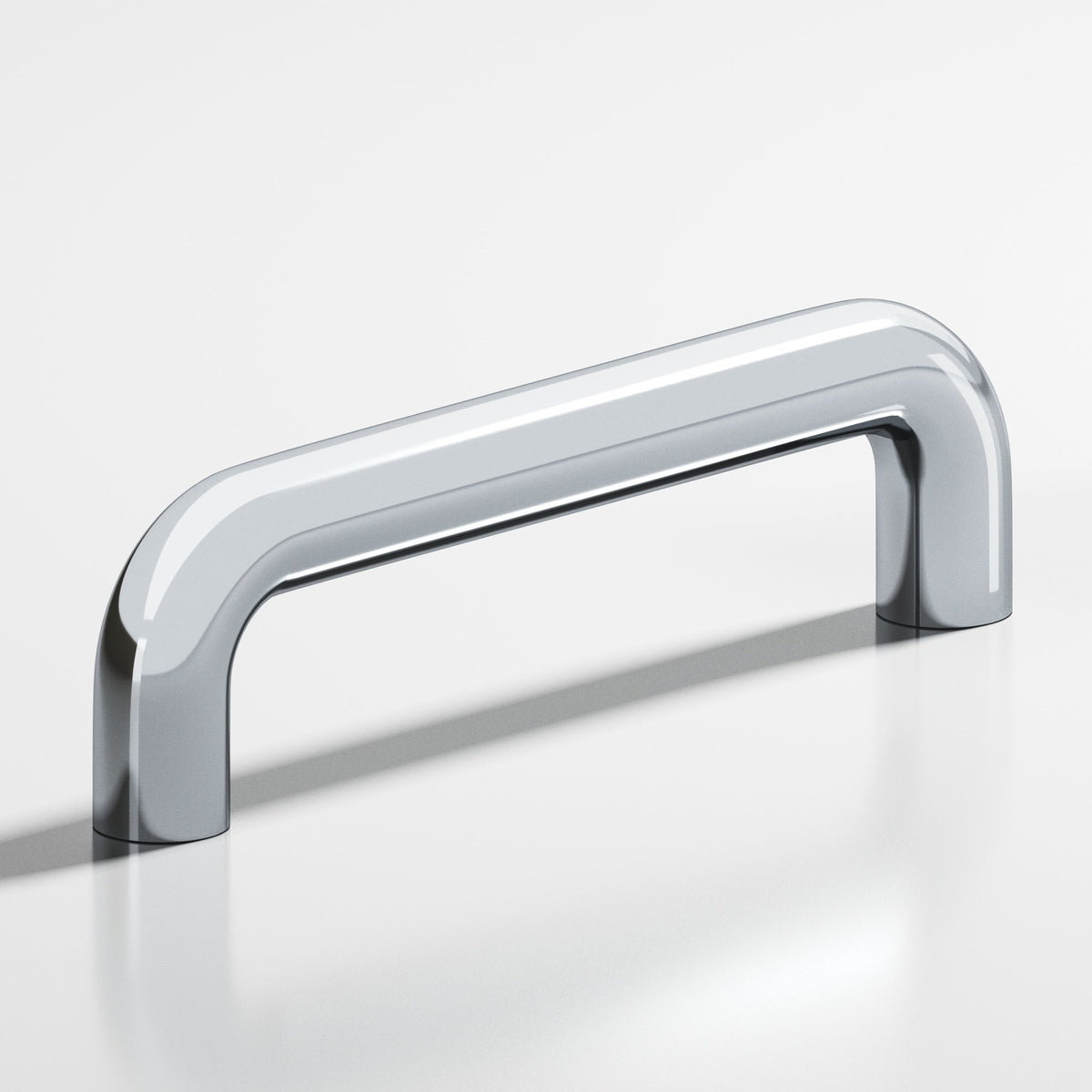

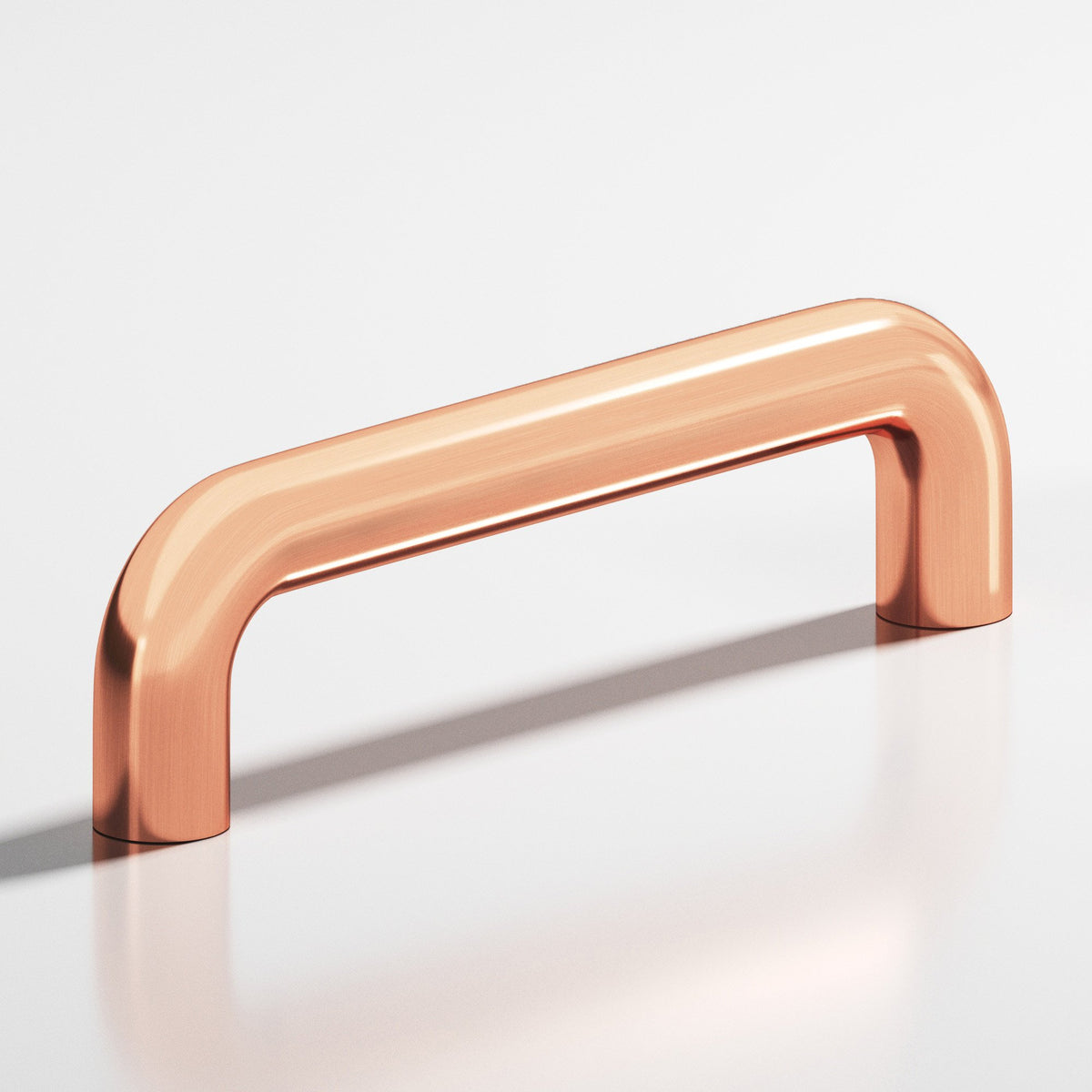

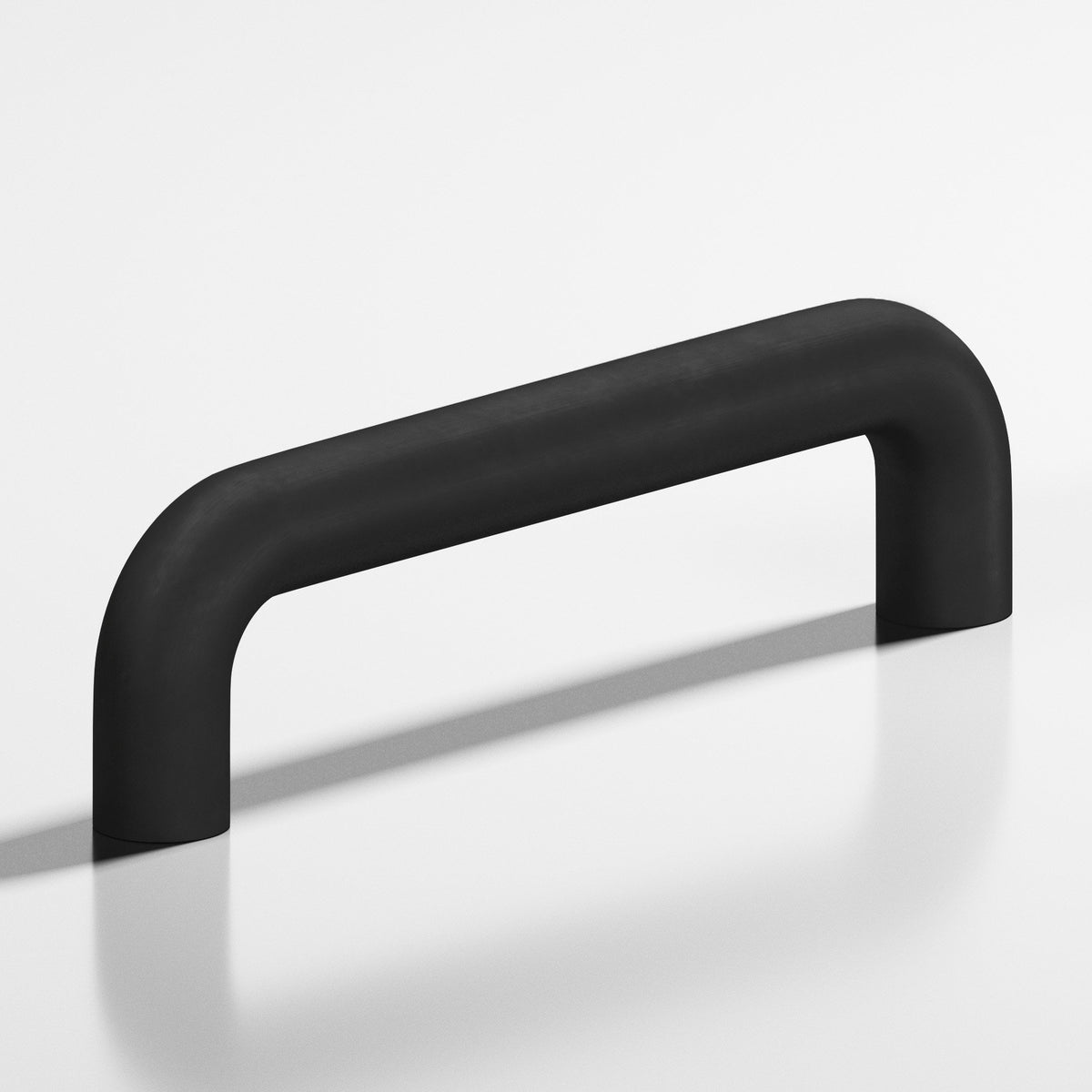

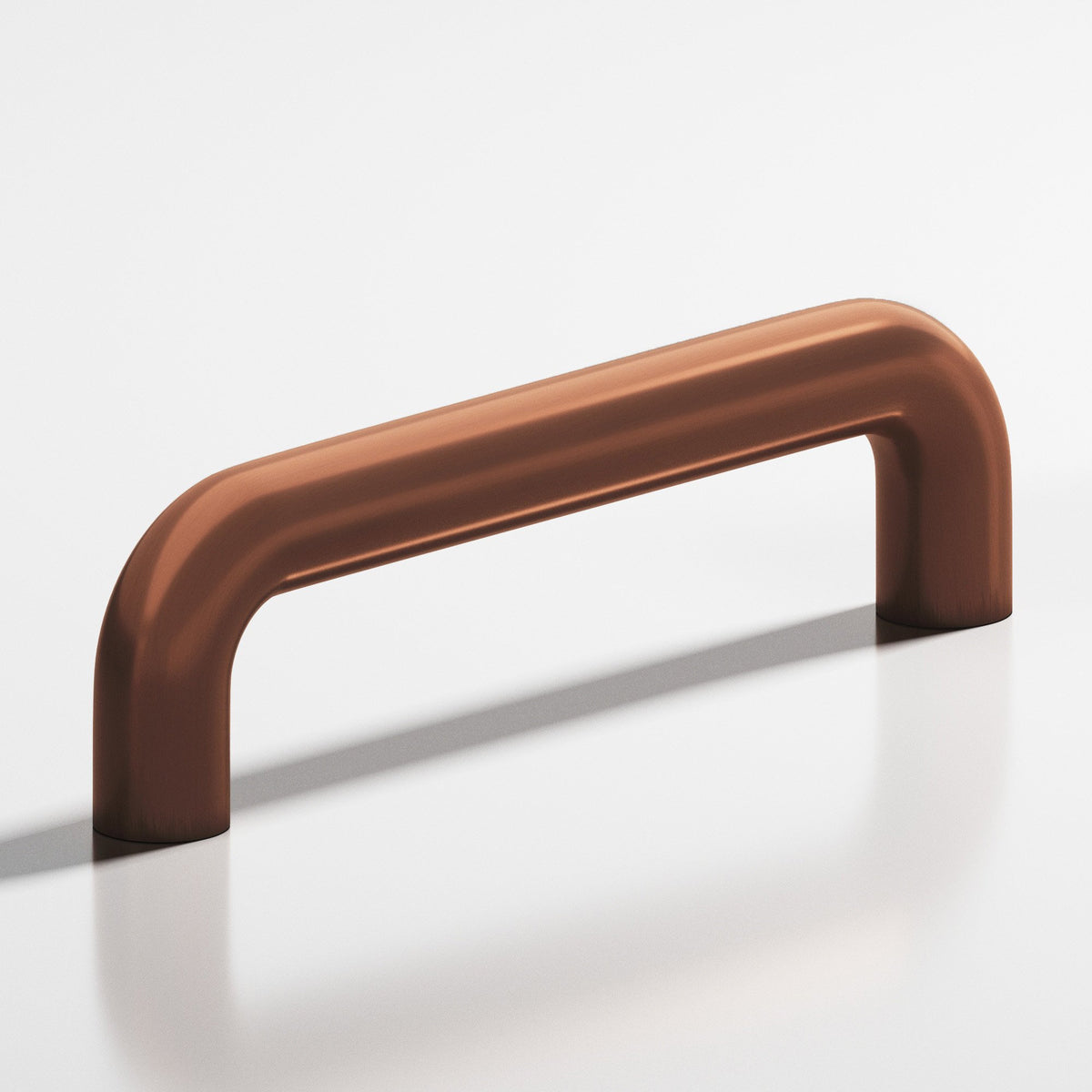

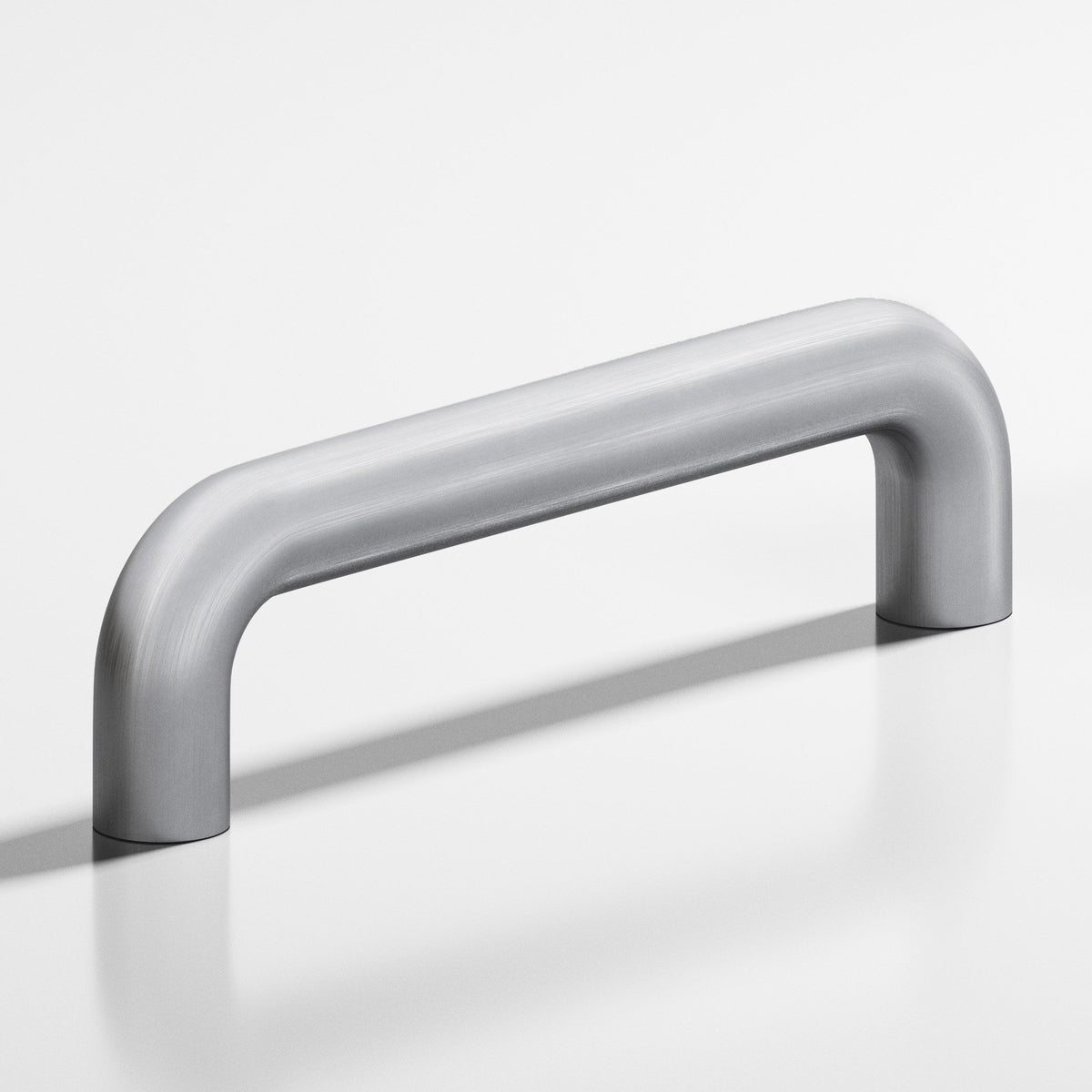

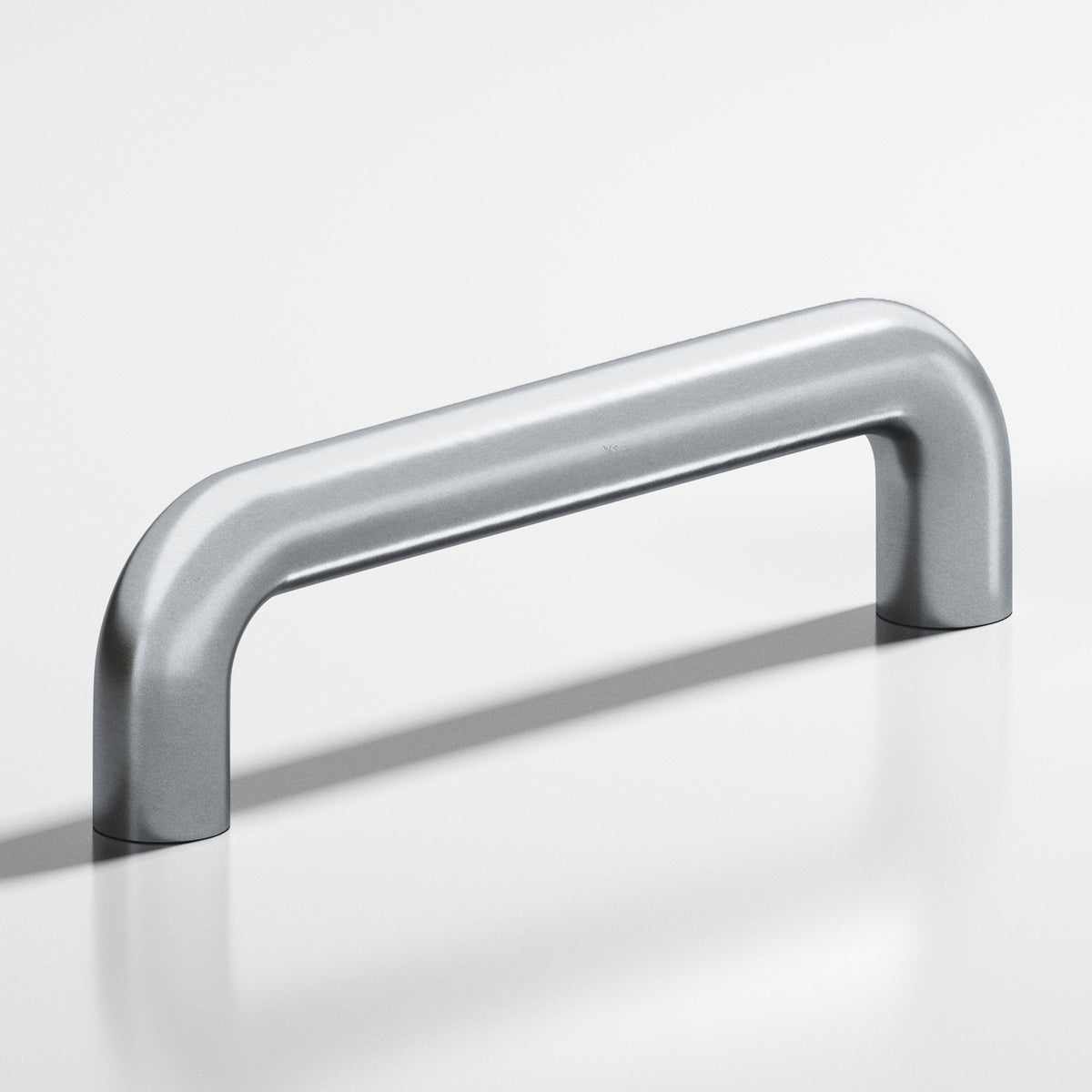

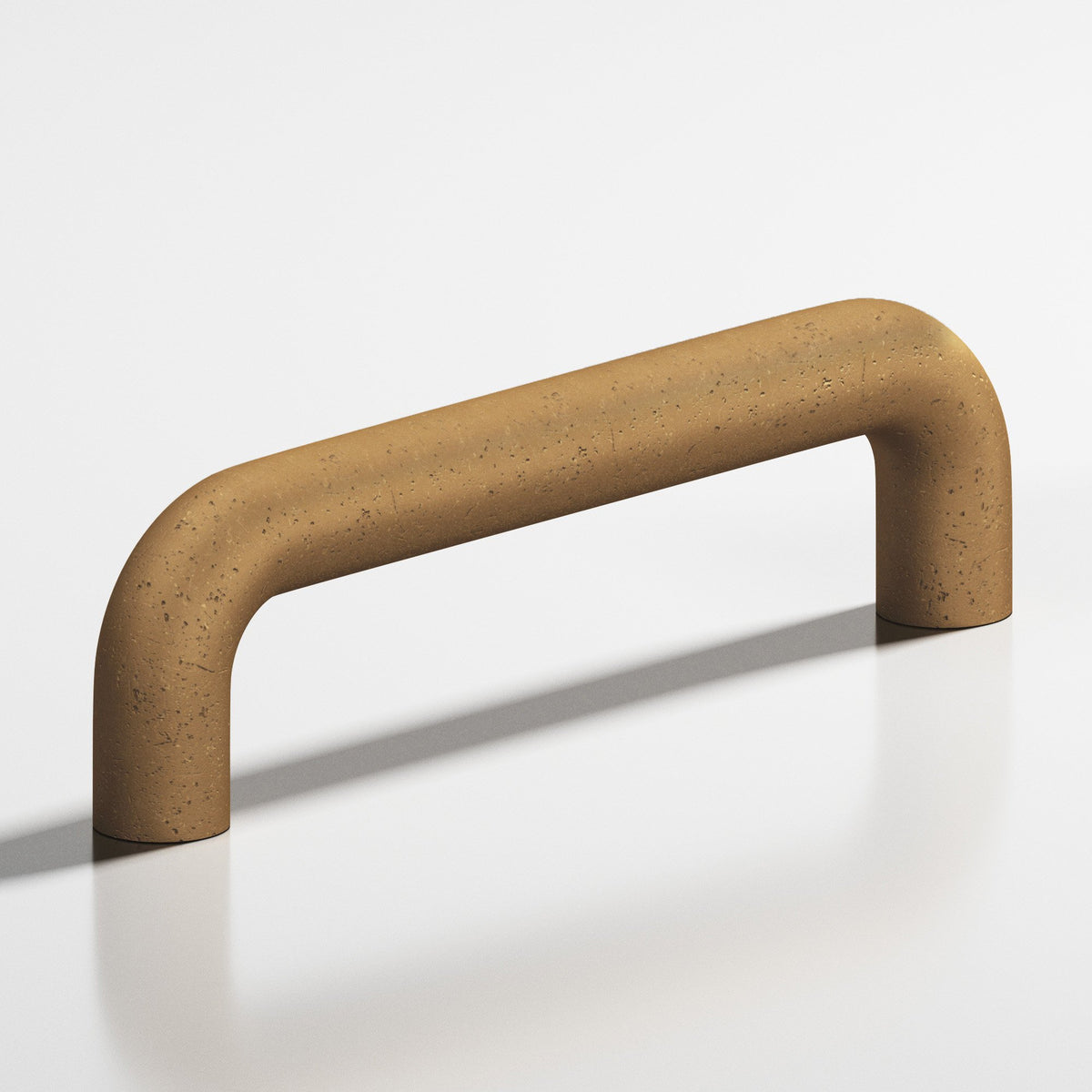

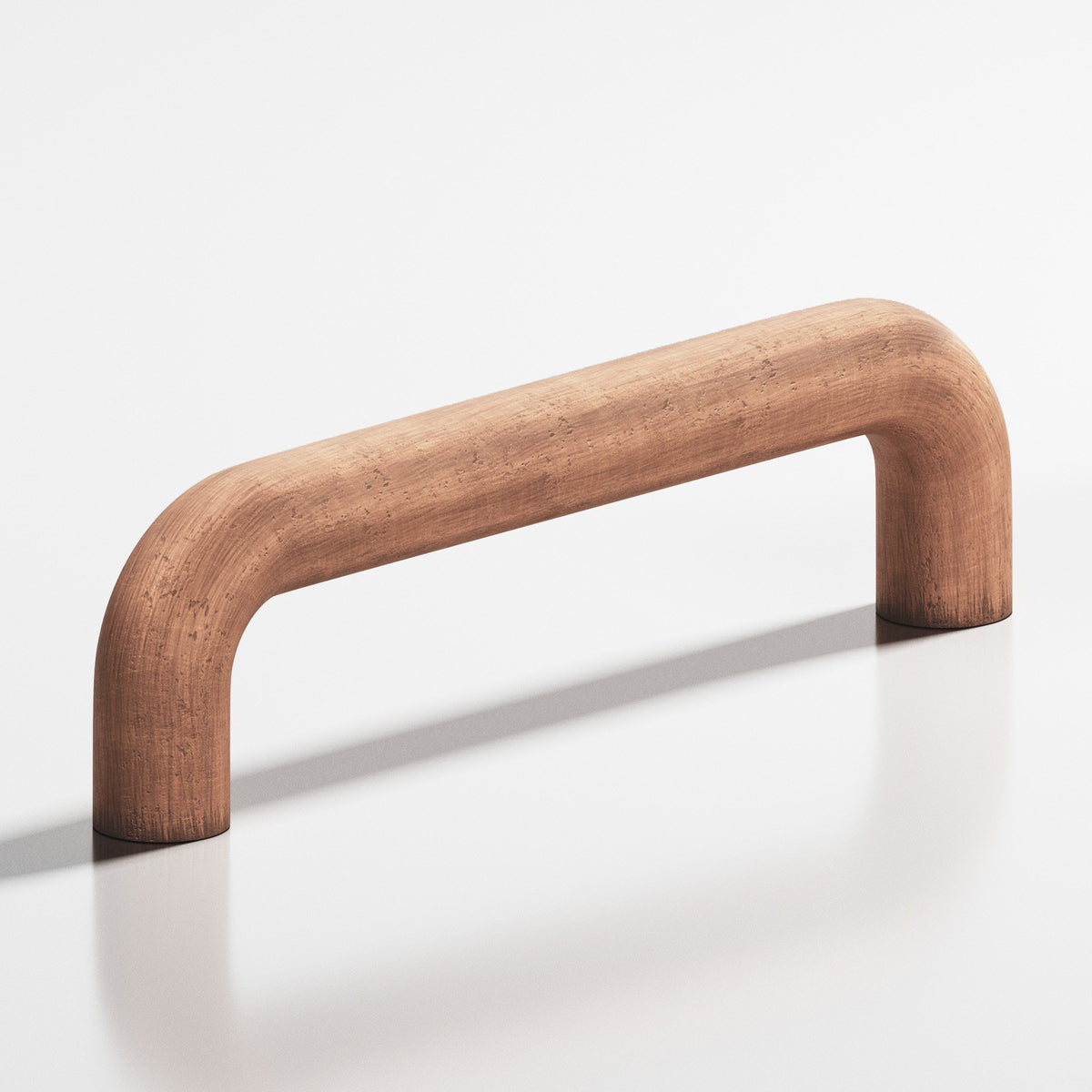

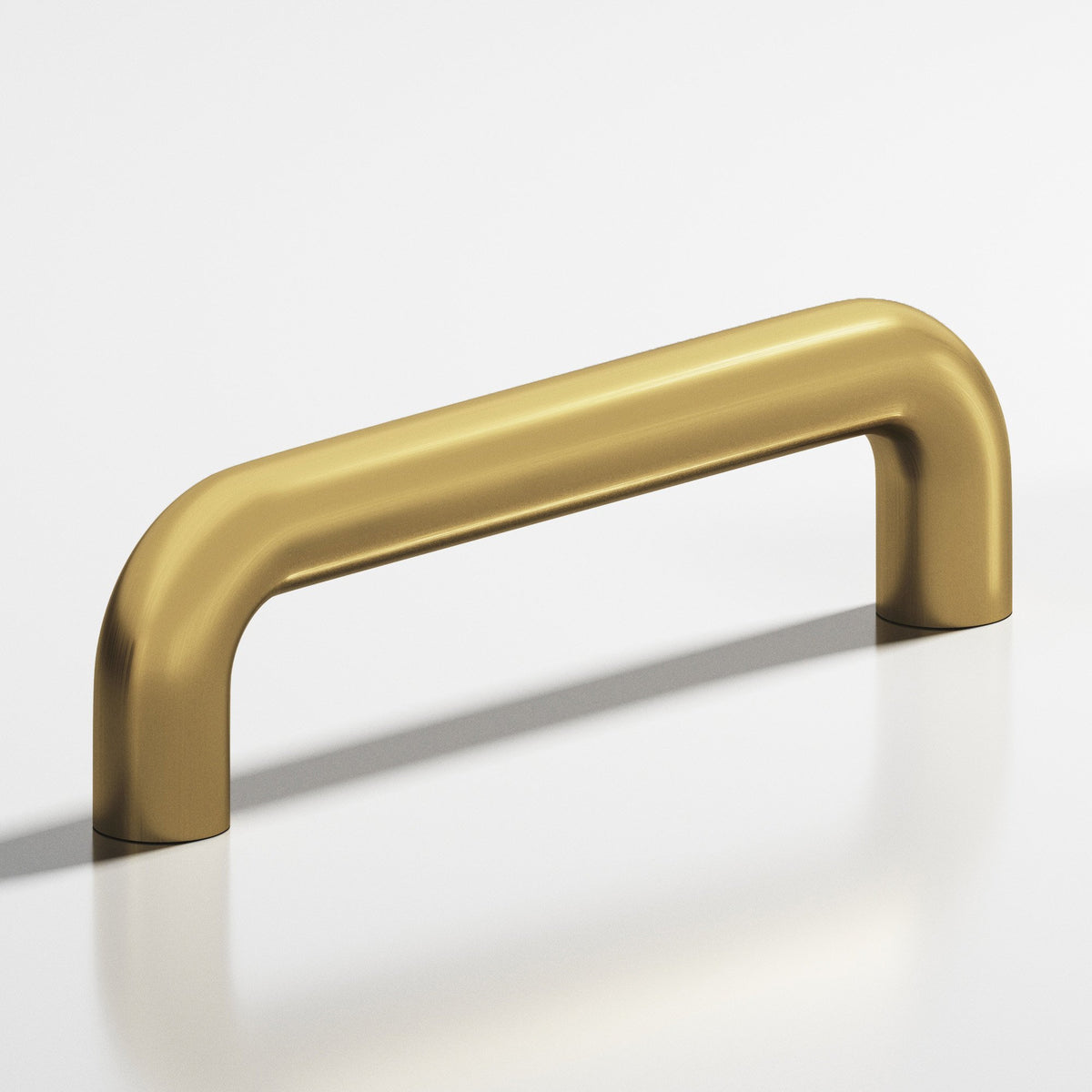

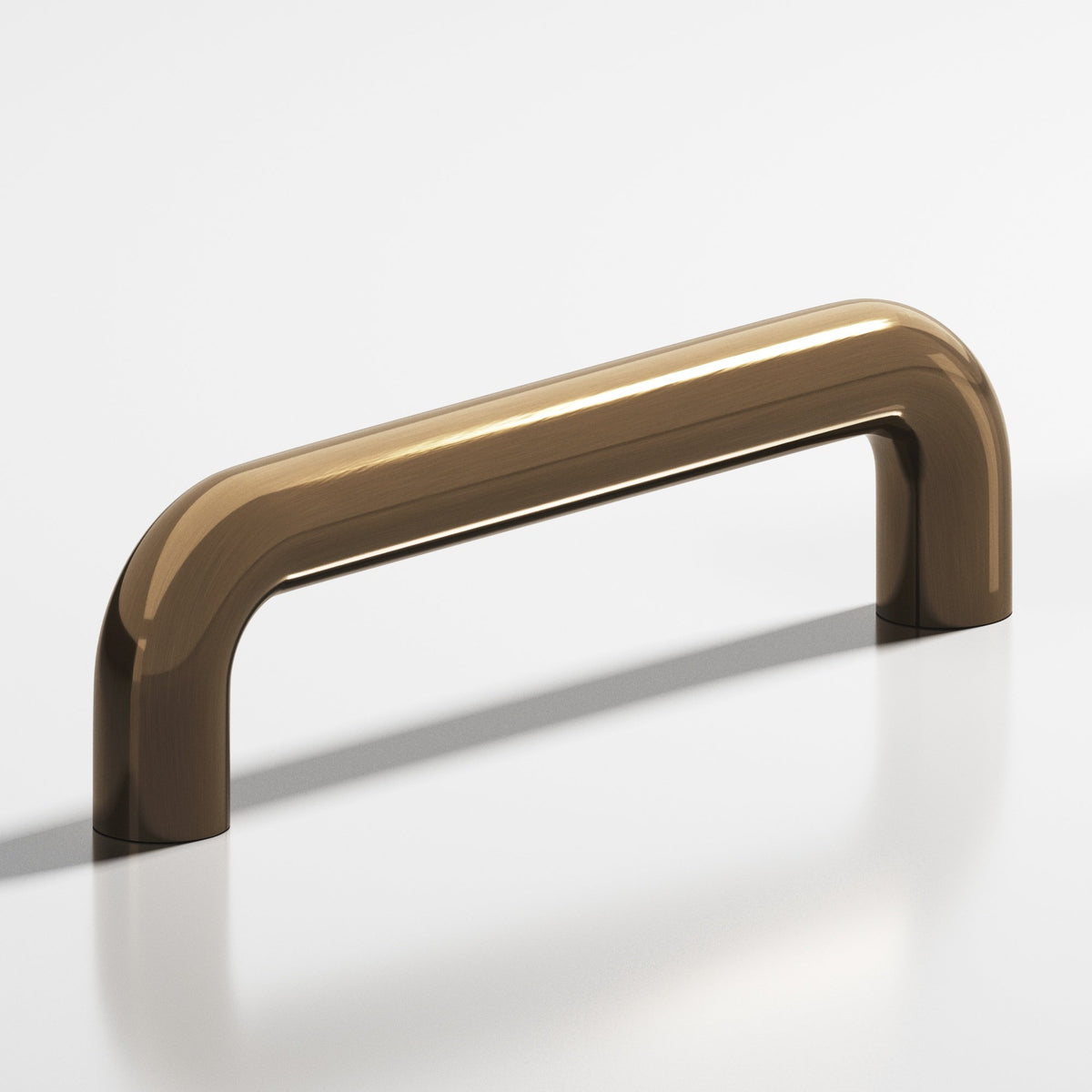

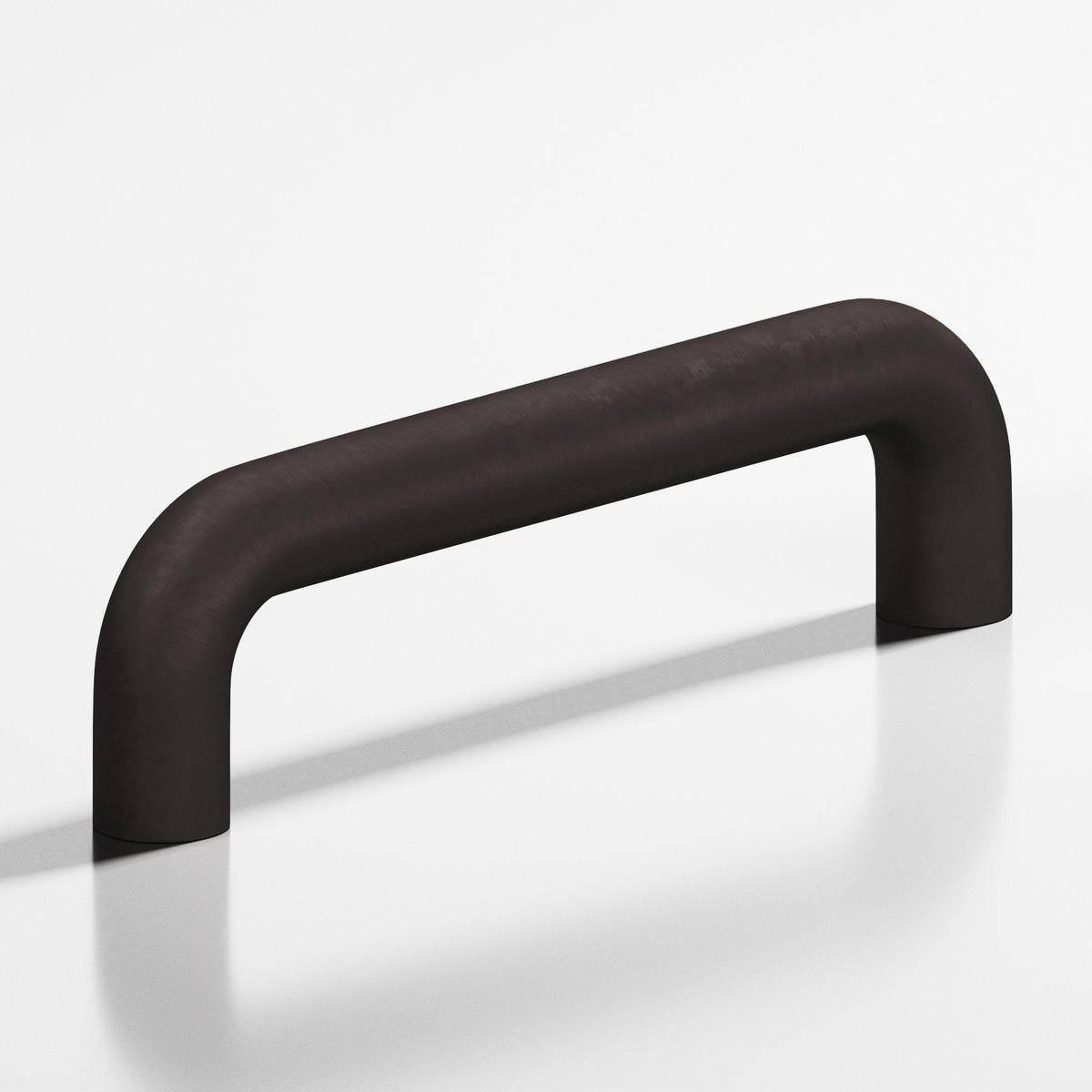

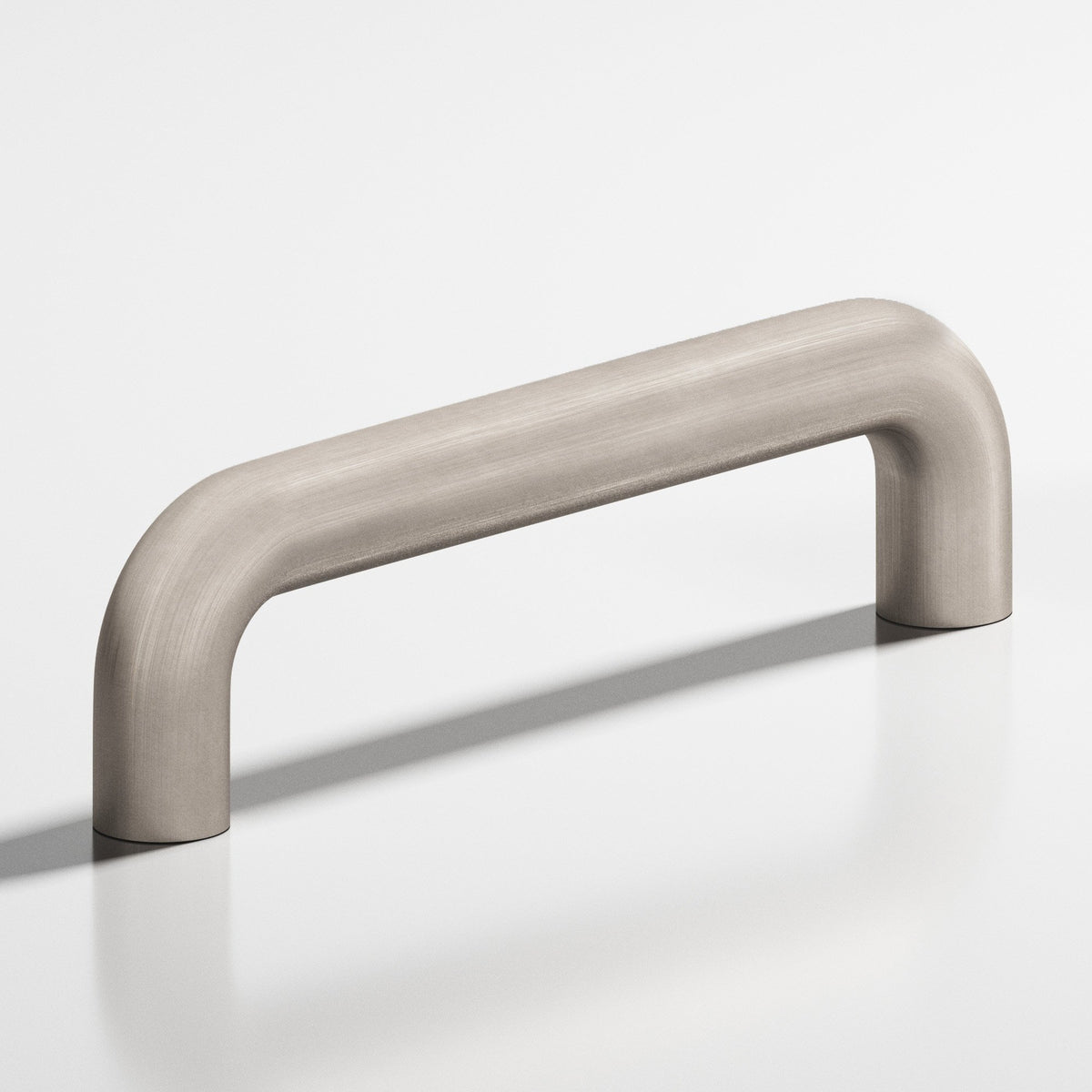

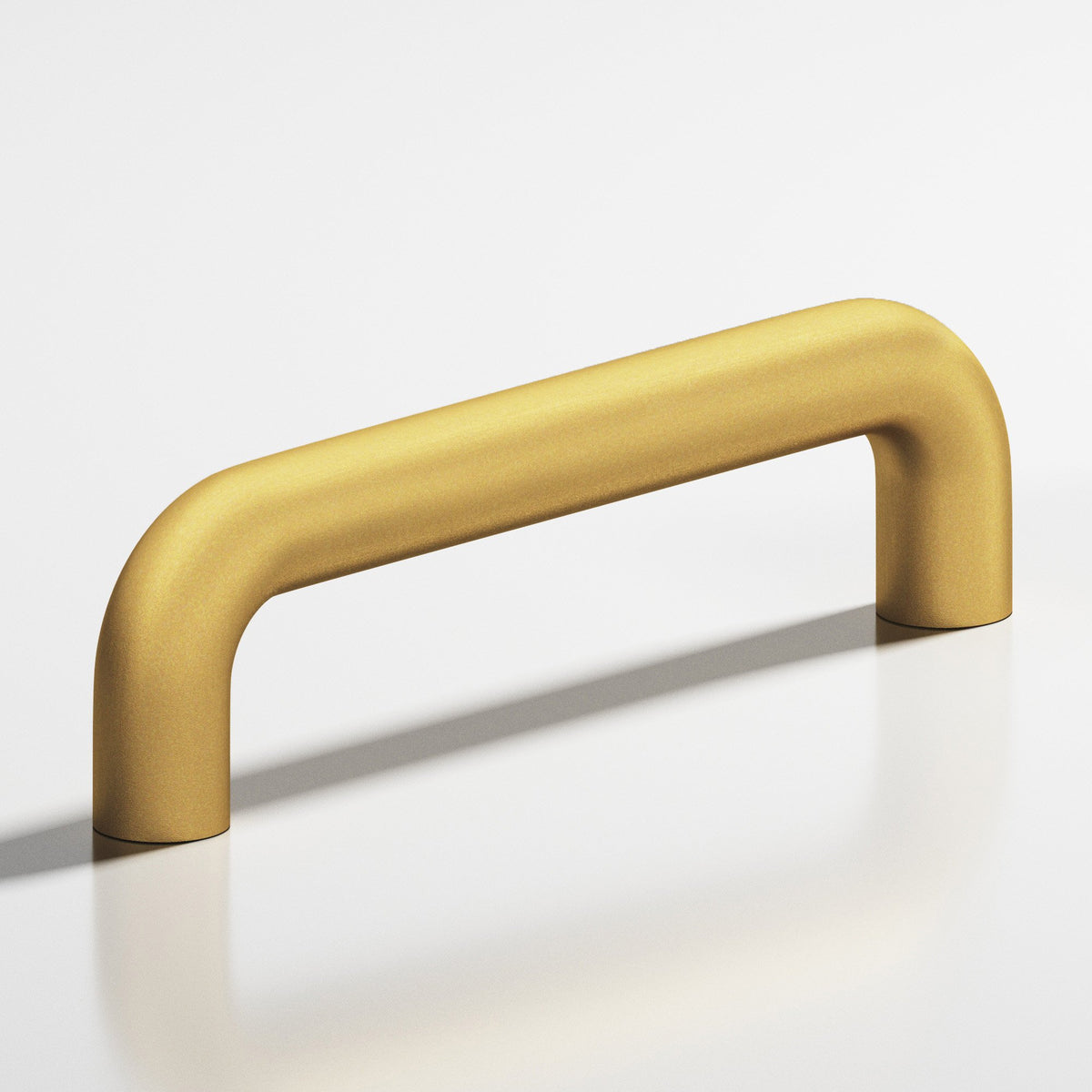

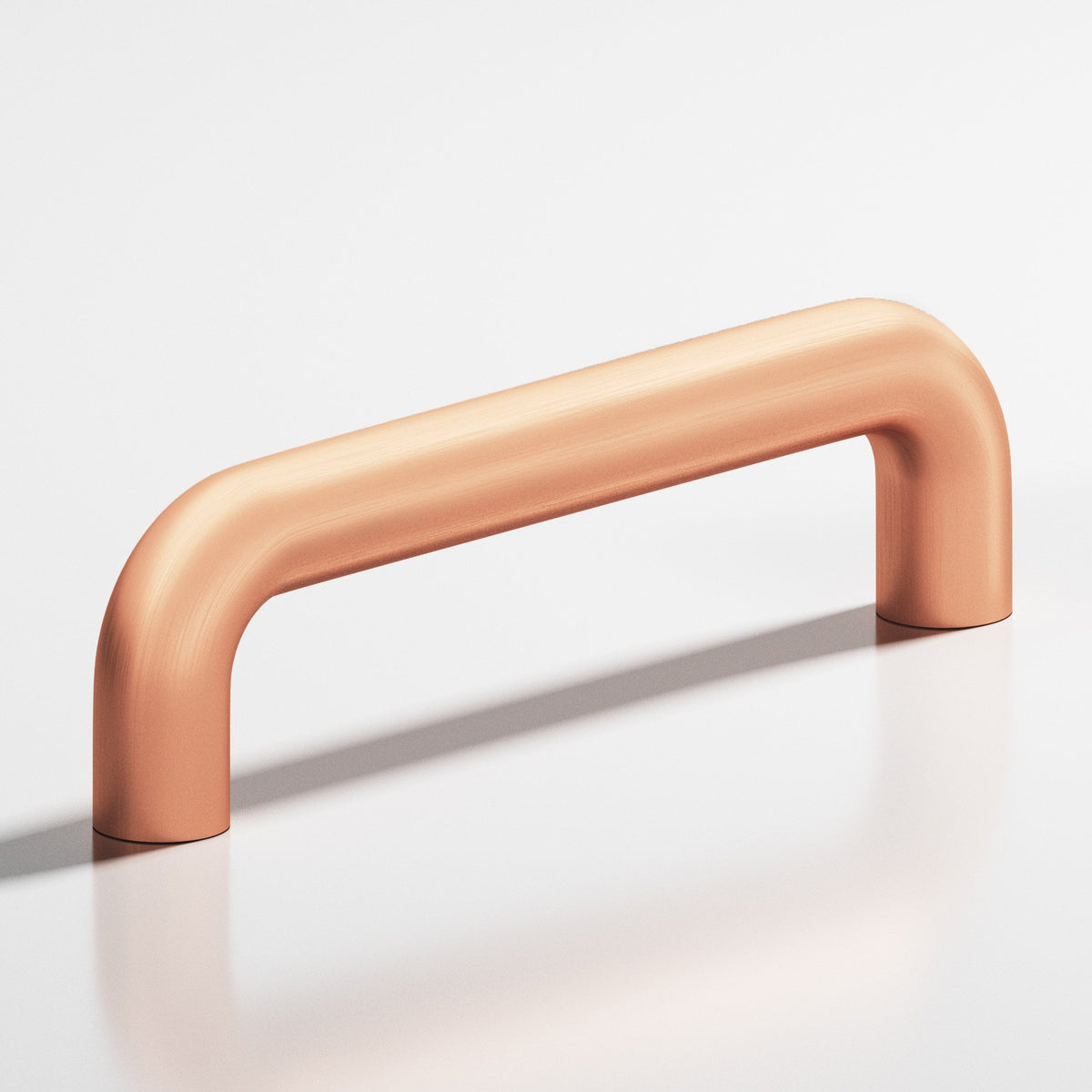

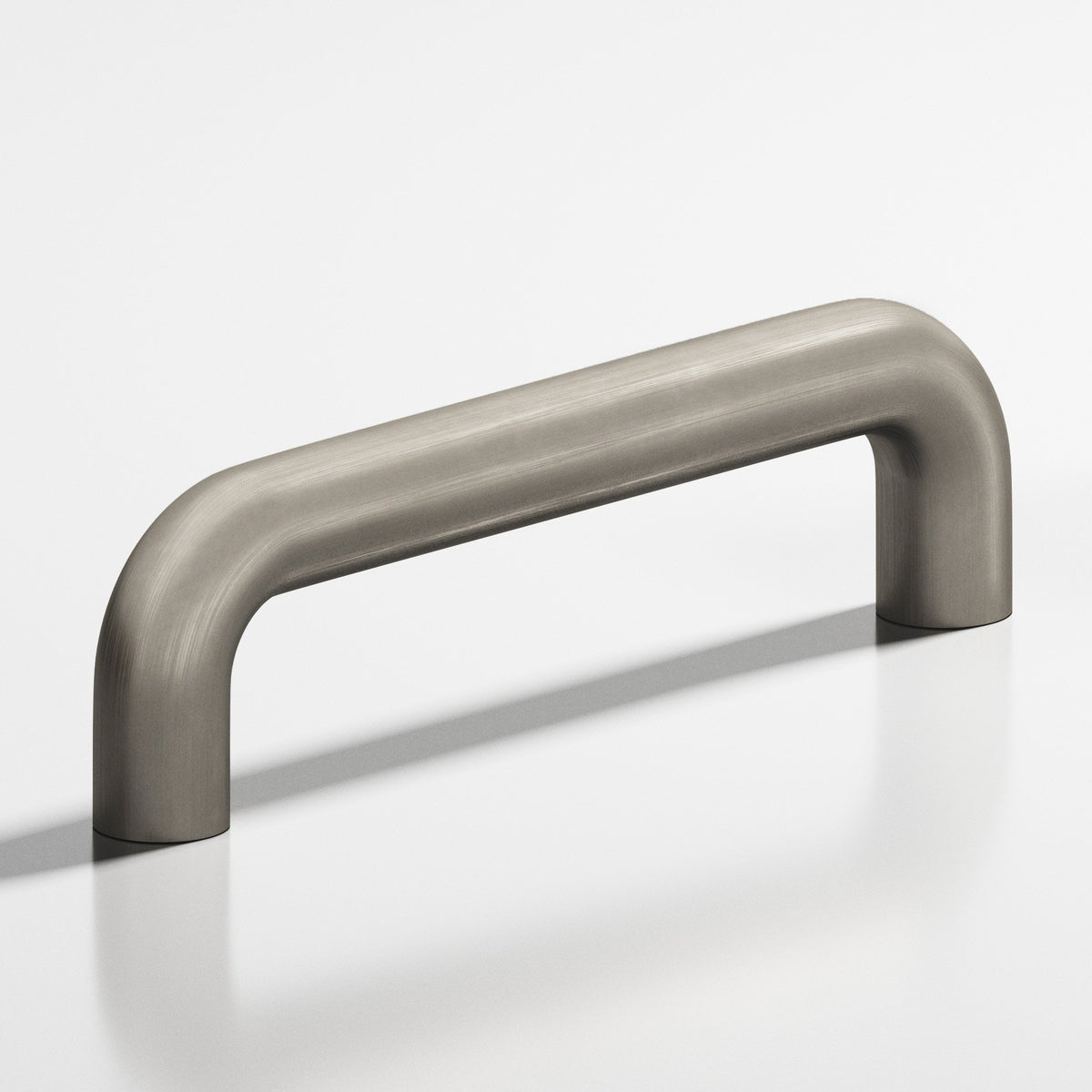

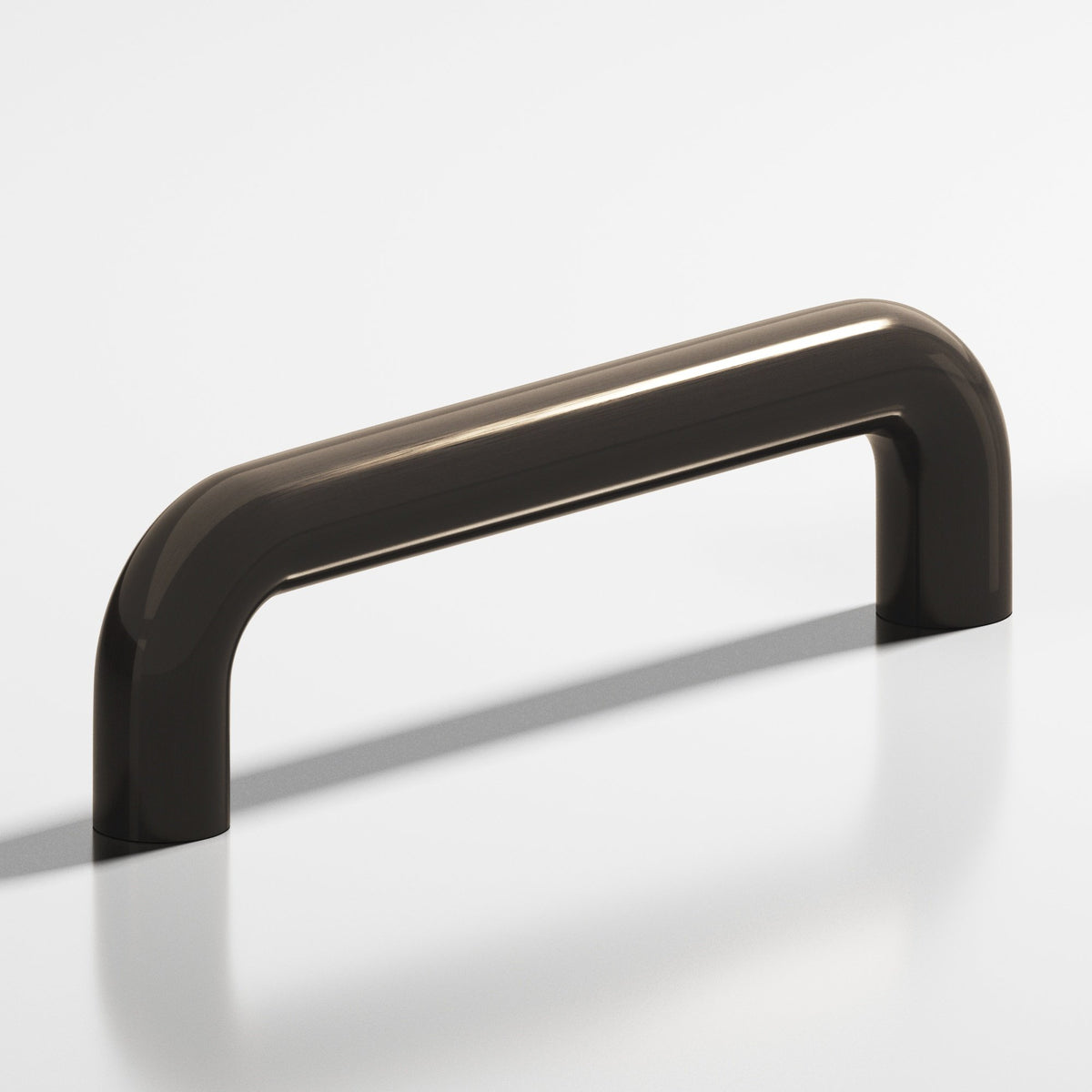

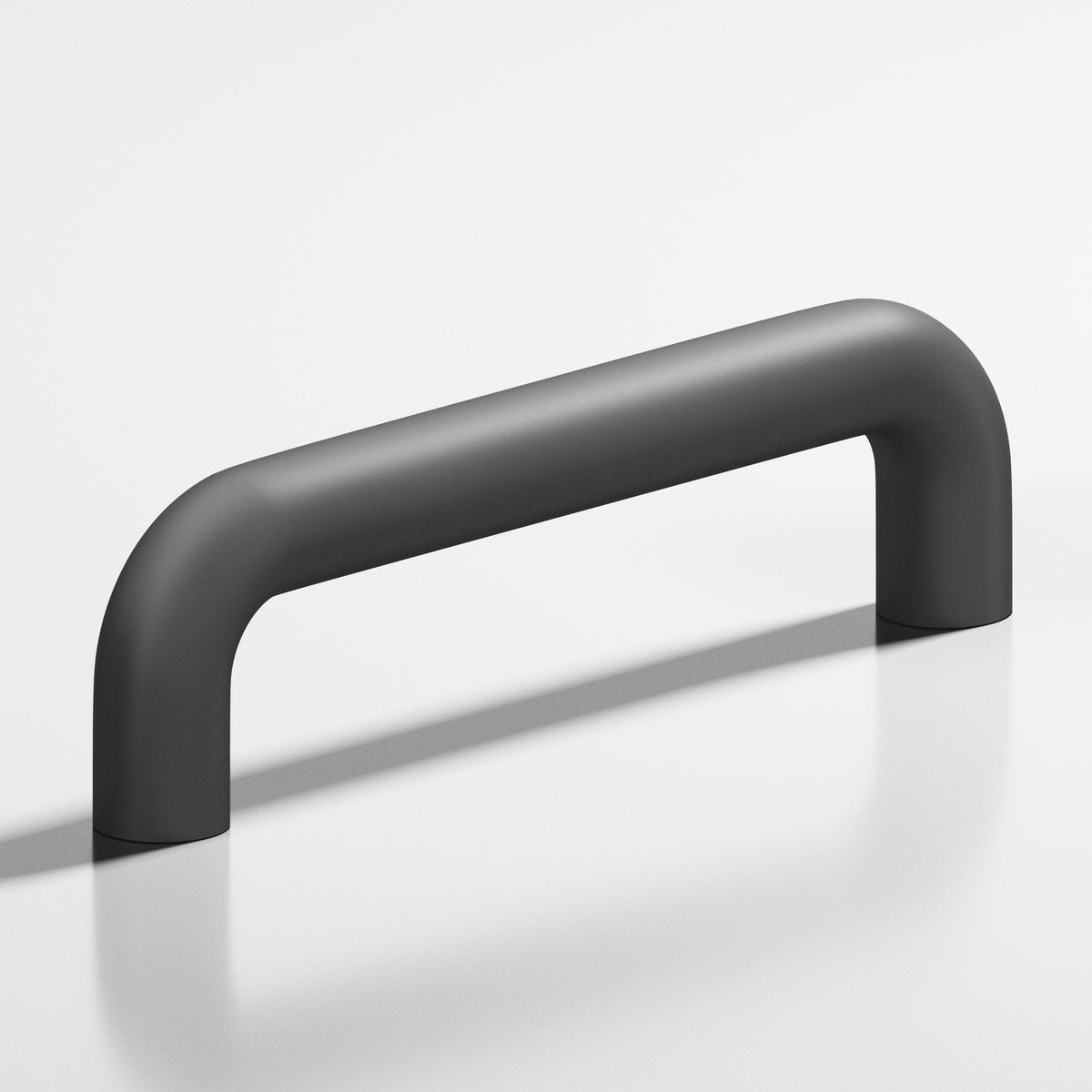

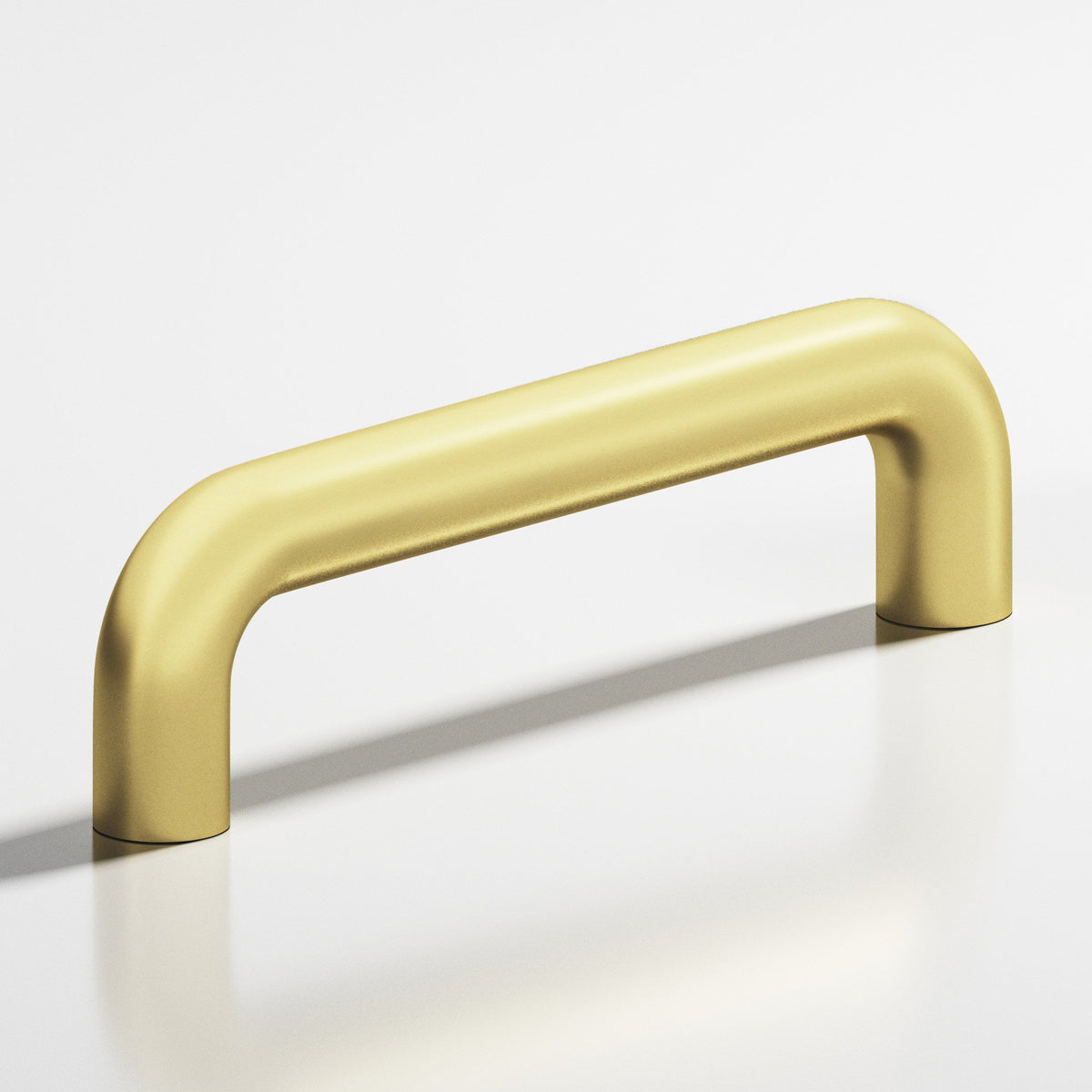

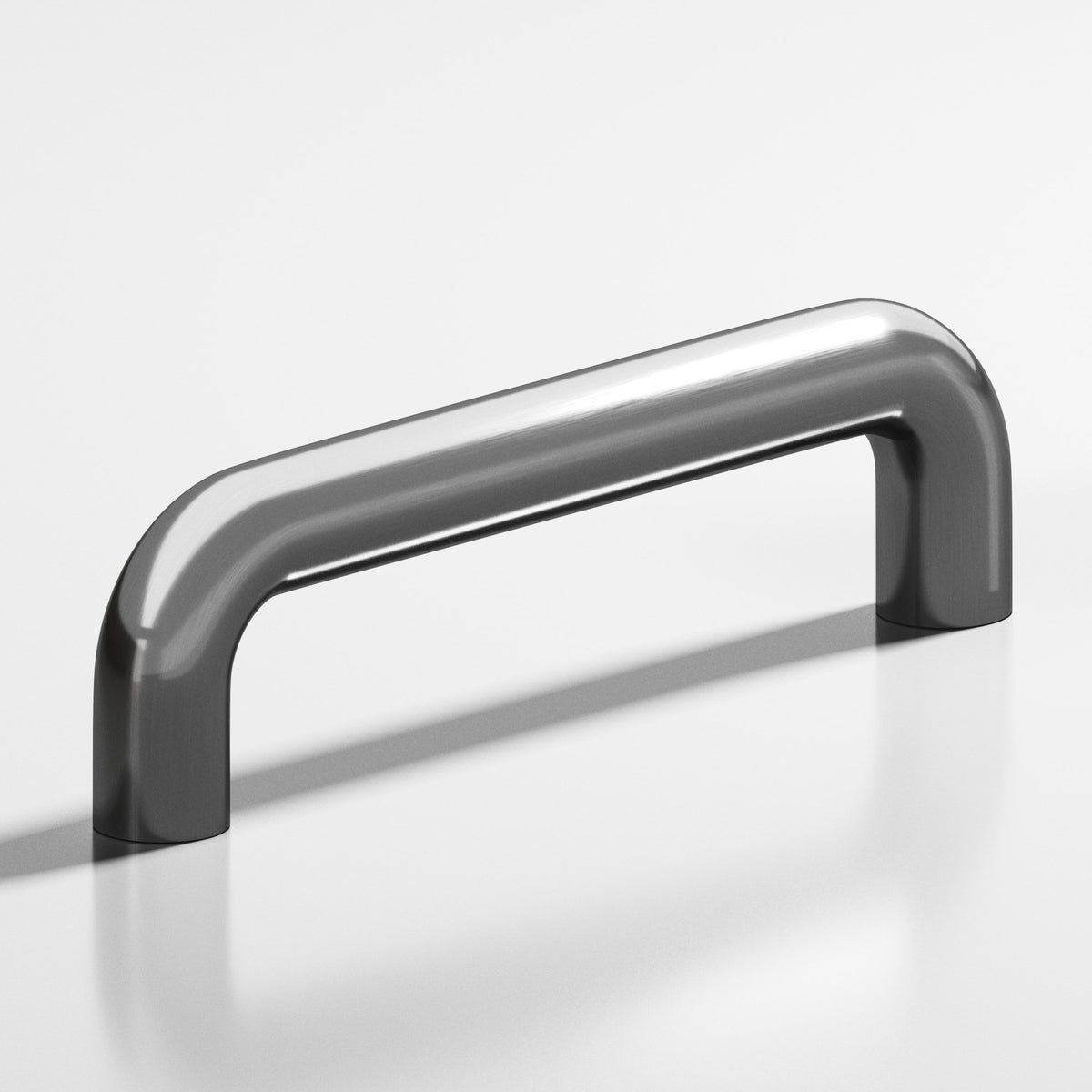

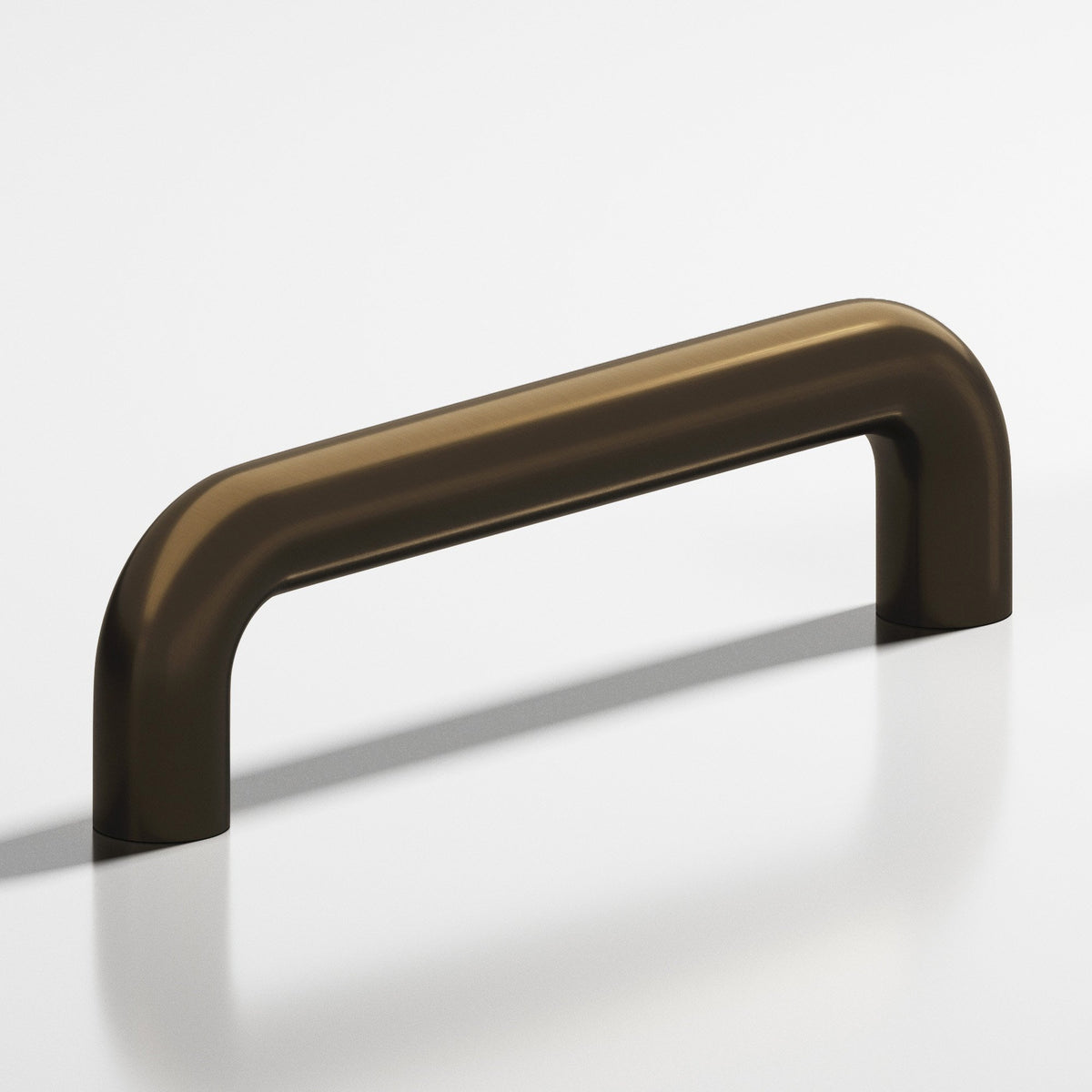

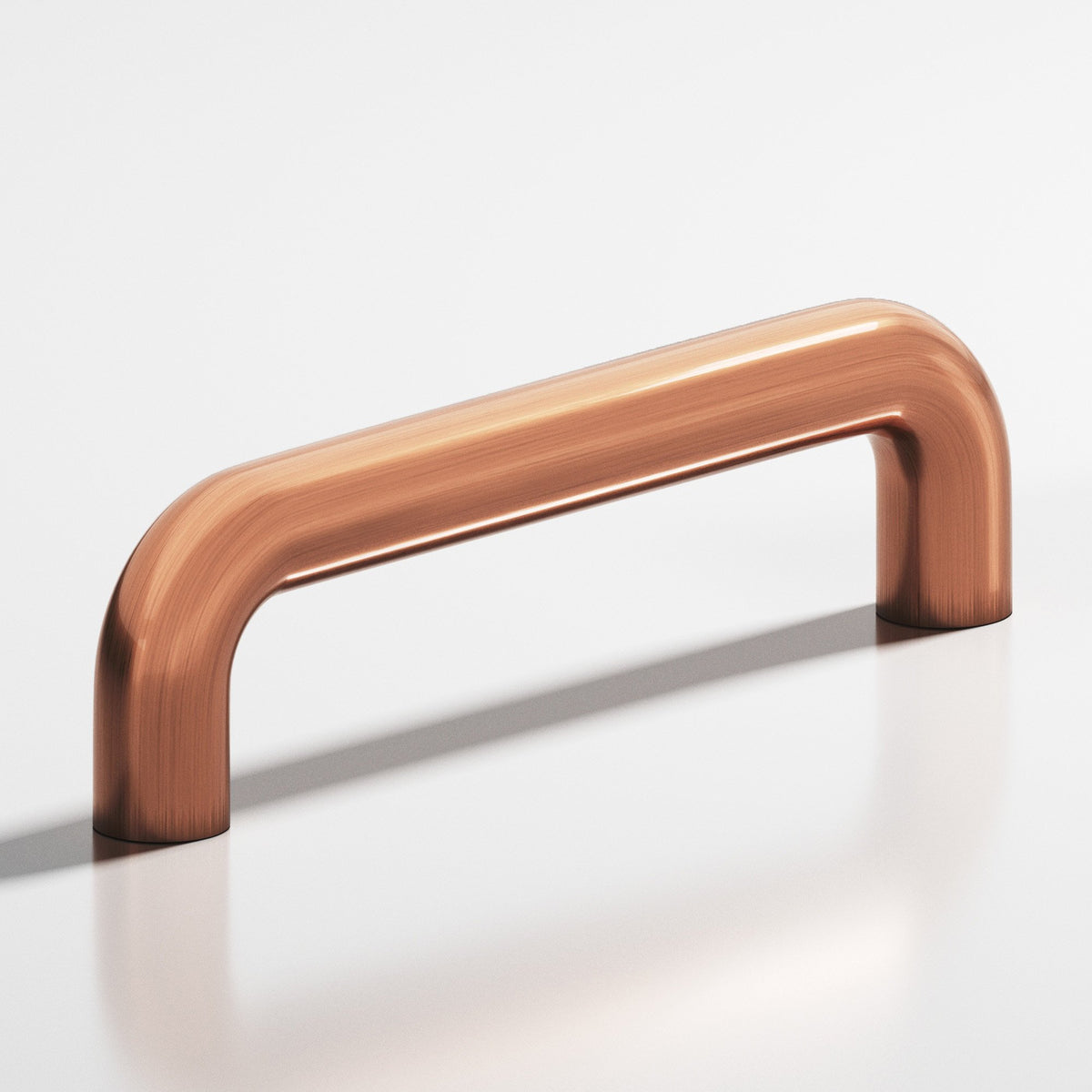

The Colonial Bronze 222 Wire Pull, 2-1/2 in Projection is handcrafted by Colonial Bronze in Torrington, Connecticut, from 94% recycled brass and hand finished to order. Available in 47 finishes and 14 sizes.
- This product is available in all of Colonial Bronze's hand-worked finishes.
- This product is hand-crafted in the USA.
- Colonial Bronze's products are certified GREEN by SCSGlobal.
Product Details
| Series | 206 |
| Application | Cabinet Pull, Appliance Pull, Door Pull, Shower Door Pull, Back-to-Back Shower Door Pull Kit |
| Material | 94% Recycled Brass |
| Sold As | Each |
| Mounting Hardware | x2 1/4-20 screws |
| Warranty | Finishes for Life |
| Lead Time | Made to order, approx. 4 weeks plus transit |
| Made In | Torrington, CT, USA |
| Finishes Available | 47 |
Dimensions
| Size | Item # | Center to Center | Overall Length | Diameter / Cross Section | Projection | Weight |
|---|---|---|---|---|---|---|
| 6 in (152.4mm) | 222-6 | 6" | 6-3/4" | 3/4" | 2-1/2" | 1.3 lbs |
| 8 in (203.2mm) | 222-8 | 8" | 8-3/4" | 3/4" | 2-1/2" | 1.57 lbs |
| 10 in (254mm) | 222-10 | 10" | 10-3/4" | 3/4" | 2-1/2" | 1.84 lbs |
| 12 in (304.8mm) | 222-12 | 12" | 12-3/4" | 3/4" | 2-1/2" | 2.11 lbs |
| 18 in (457.2mm) | 222-18 | 18" | 18-3/4" | 3/4" | 2-1/2" | 2.92 lbs |
| 24 in (609.6mm) | 222-24 | 24" | 24-3/4" | 3/4" | 2-1/2" | 3.74 lbs |
| 30 in (762mm) | 222-30 | 30" | 30-3/4" | 3/4" | 2-1/2" | 4.55 lbs |
| 6 in (152.4mm) Back-to-Back Kit | 222BB-6 | 6" | 6-3/4" | 3/4" | 2-1/2" | 2.64 lbs |
| 8 in (203.2mm) Back-to-Back Kit | 222BB-8 | 8" | 8-3/4" | 3/4" | 2-1/2" | 3.18 lbs |
| 10 in (254mm) Back-to-Back Kit | 222BB-10 | 10" | 10-3/4" | 3/4" | 2-1/2" | 3.72 lbs |
| 12 in (304.8mm) Back-to-Back Kit | 222BB-12 | 12" | 12-3/4" | 3/4" | 2-1/2" | 4.26 lbs |
| 18 in (457.2mm) Back-to-Back Kit | 222BB-18 | 18" | 18-3/4" | 3/4" | 2-1/2" | 5.88 lbs |
| 24 in (609.6mm) Back-to-Back Kit | 222BB-24 | 24" | 24-3/4" | 3/4" | 2-1/2" | 7.52 lbs |
| 30 in (762mm) Back-to-Back Kit | 222BB-30 | 30" | 30-3/4" | 3/4" | 2-1/2" | 9.14 lbs |

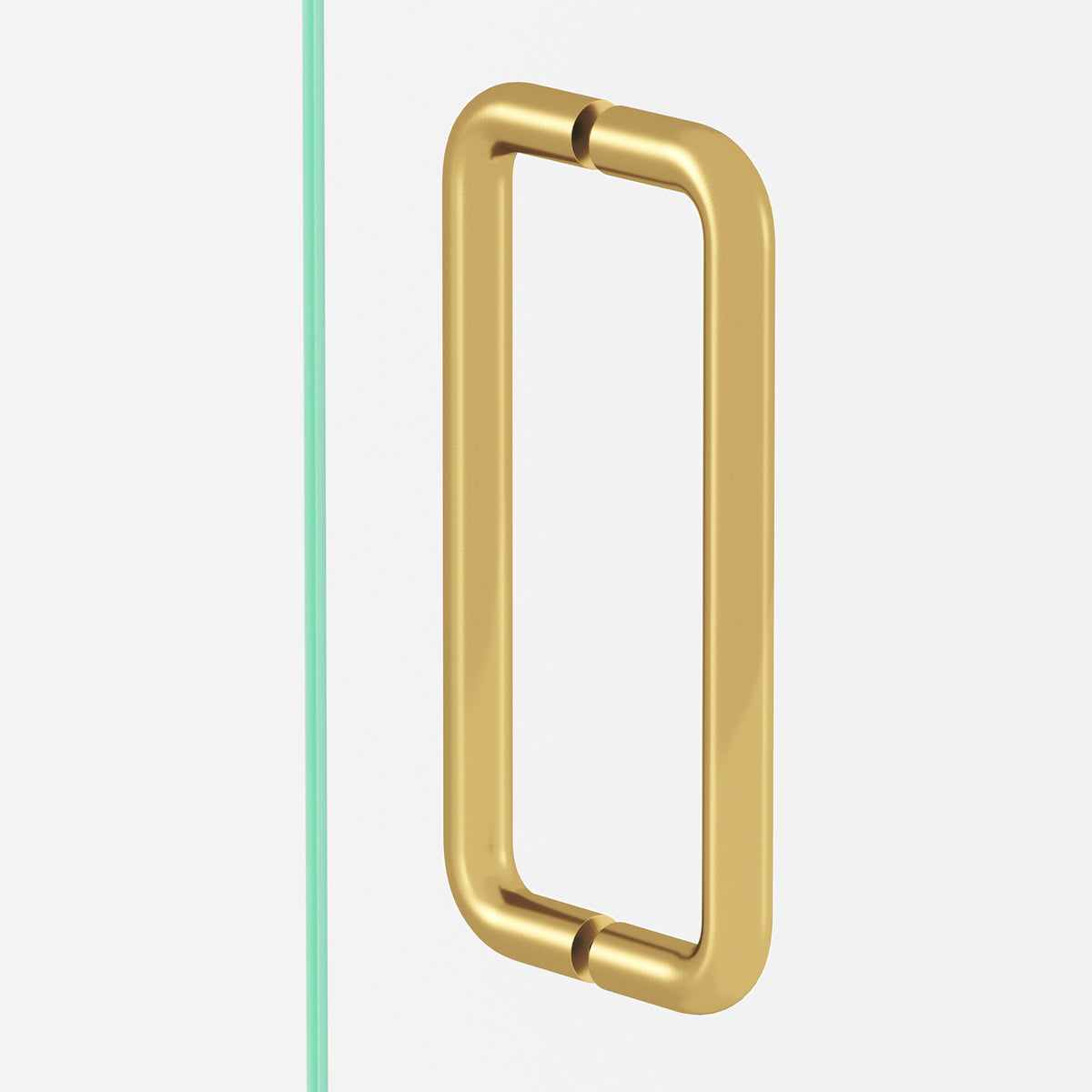

Back-to-Back Kits mount on 3/8" and 1/2" thick glass doors and include x2 1/4-20 x 1-1/4" screws with protective rubber bushings and washers.
Download Specification Sheet (PDF)
Measurements are approximate and should be used as guidelines only.
