The Baldwin Reserve Rustic knob pairs a 2-5/16" diameter with your choice of 2 rose styles and 2 hand-finished options, so interior door hardware can be specified as a matched set or deliberately mixed.
Functions available: Entry, Passage, Privacy, Full Dummy, Half Dummy
Finishes: Dark Bronze, White Bronze
Specifications
| Knob diameter | 2-5/16" |
| Knob projection | 1-13/16" |
| Overall projection | 2-1/4" |
| Door preparation | 2-1/8" cross bore, 1" edge bore for latch |
| Door thickness | 1-3/8" to 2" standard; 2" to 2-1/2" with Thick Door Service Part Kit |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Latch bolt | 1/2" passage/privacy function bolt |
| Knob rotation | 55°–60° |
| Lock type | Tubular |
| Handing | Not required — knobs are non-handed |
| Design style | Rustic |
| Standard | ANSI/BHMA Grade 2 |
Rose dimensions
| Rose | Width | Height | Shape |
|---|---|---|---|

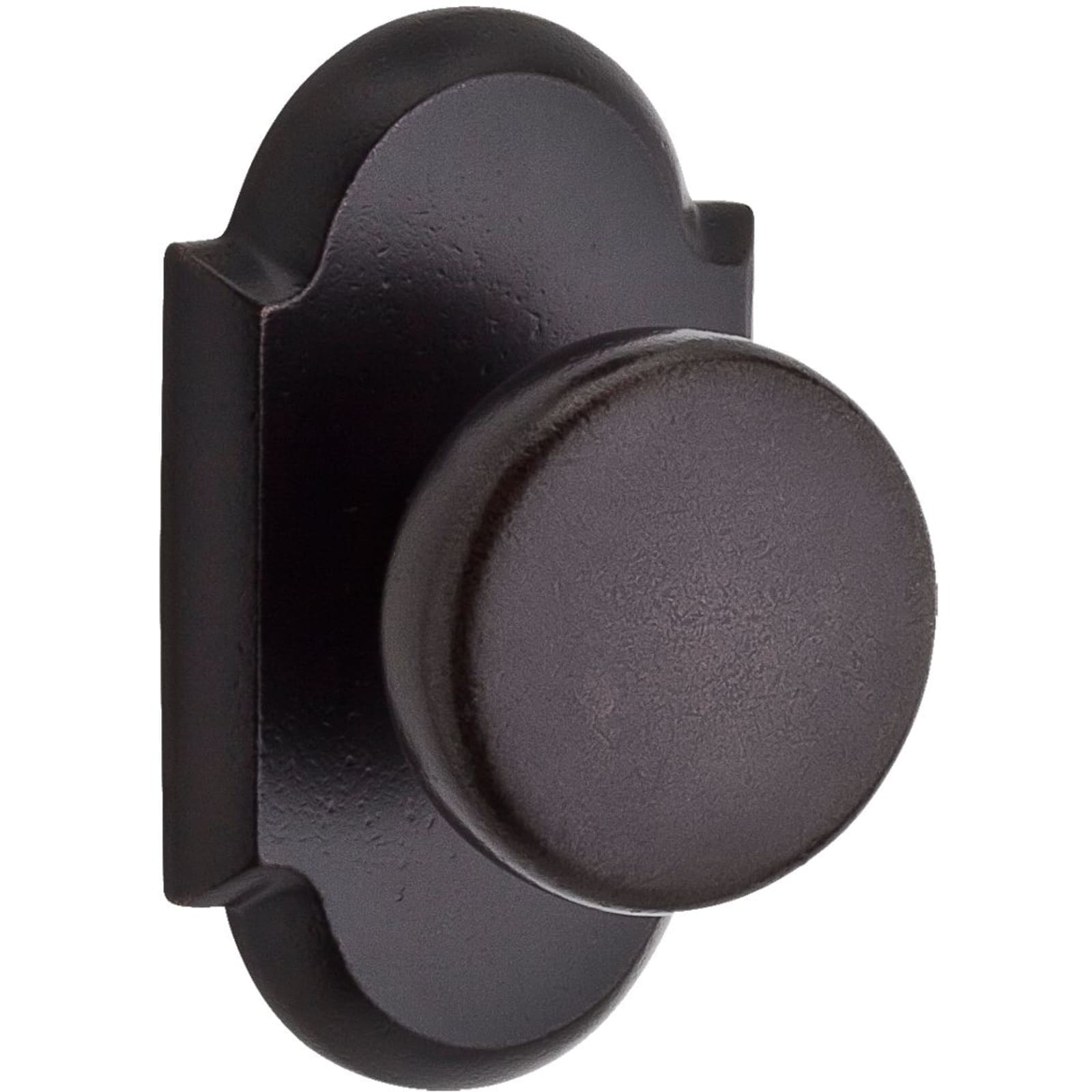

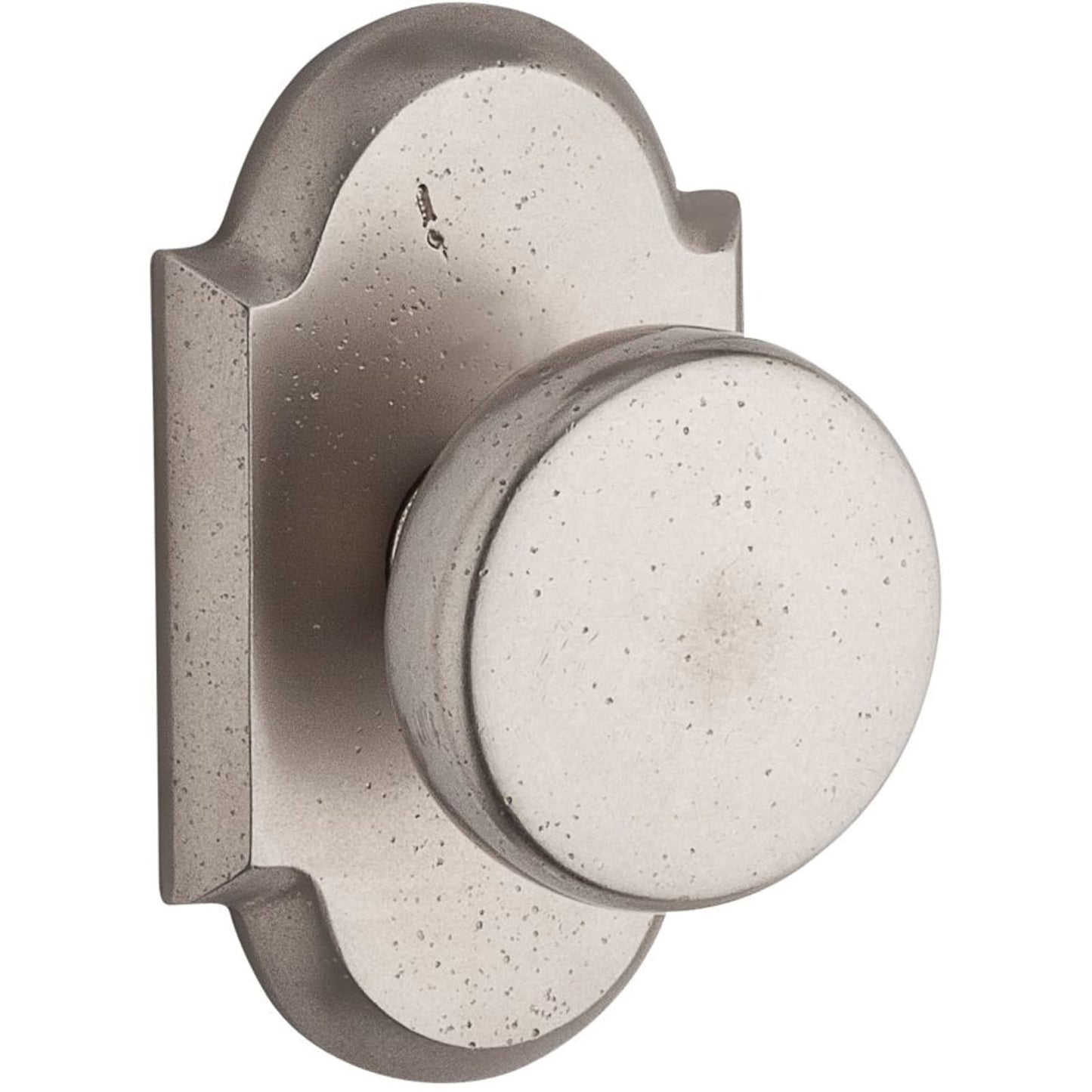

| Rustic Arch Rose | 2-11/16" | 4-1/2" | Arch |

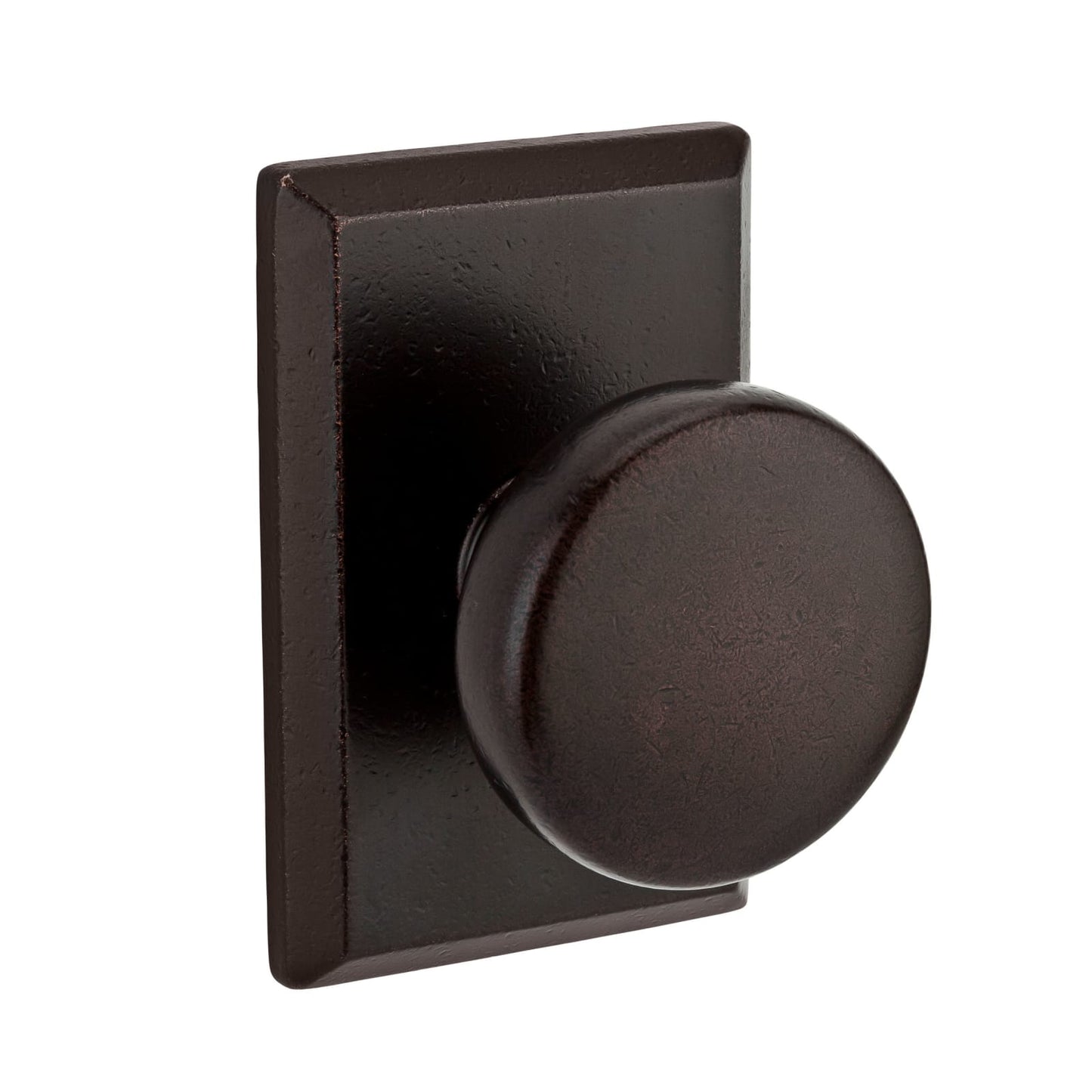

| Rustic Square Rose | 2-5/8" | 4" | Square |
Keying: Entry sets ship with a Baldwin C-Keyway pin & tumbler cylinder, keyed different. SmartKey re-key technology is available on request.
Installation and support
- Entry knob or lever instructions (PDF)
- Privacy knob and lever instructions (PDF)
- Full dummy knob and lever instructions (PDF)
- Baldwin Reserve limited warranty (PDF)
Made to order by Baldwin. Contact us for lead times on large or mixed-finish orders.
