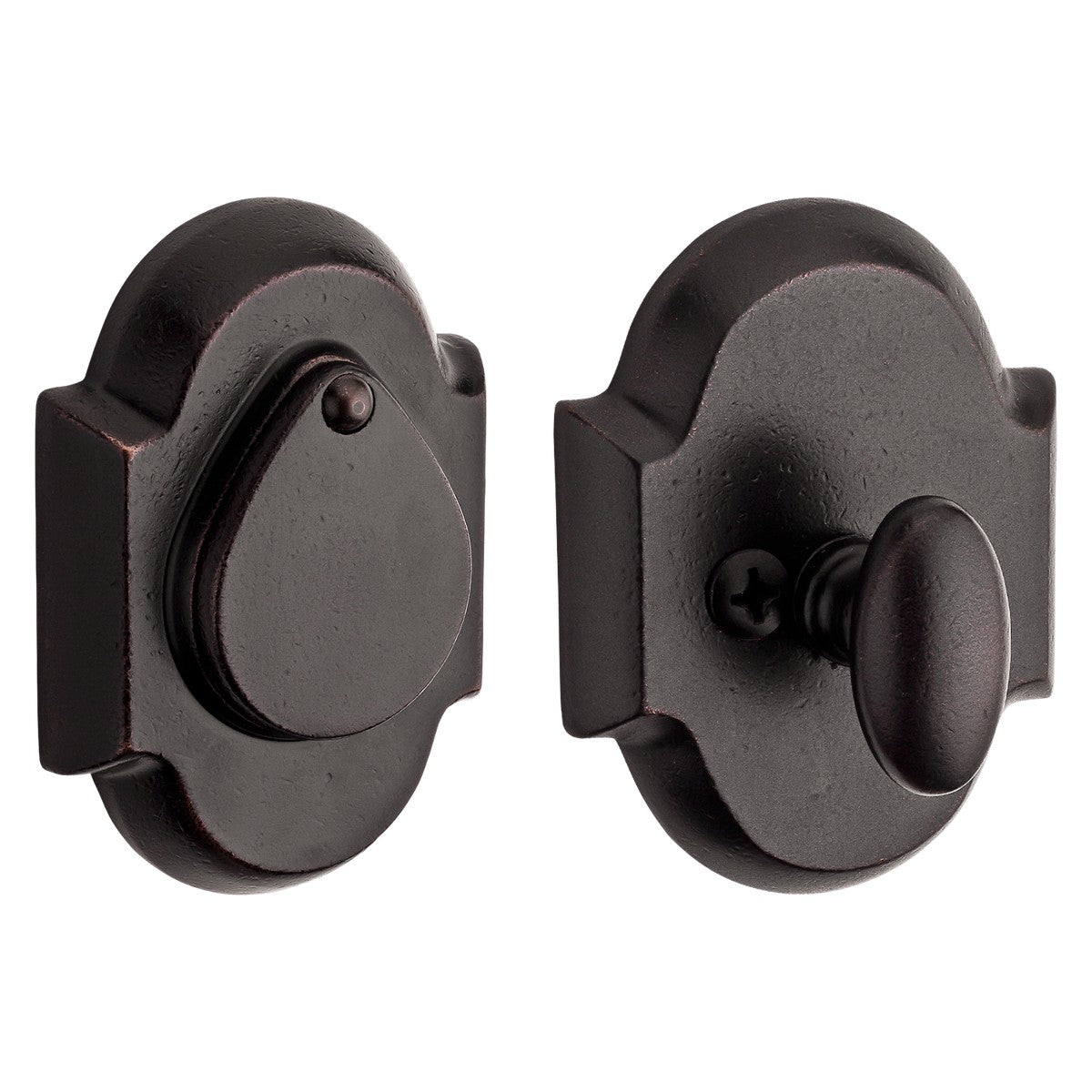

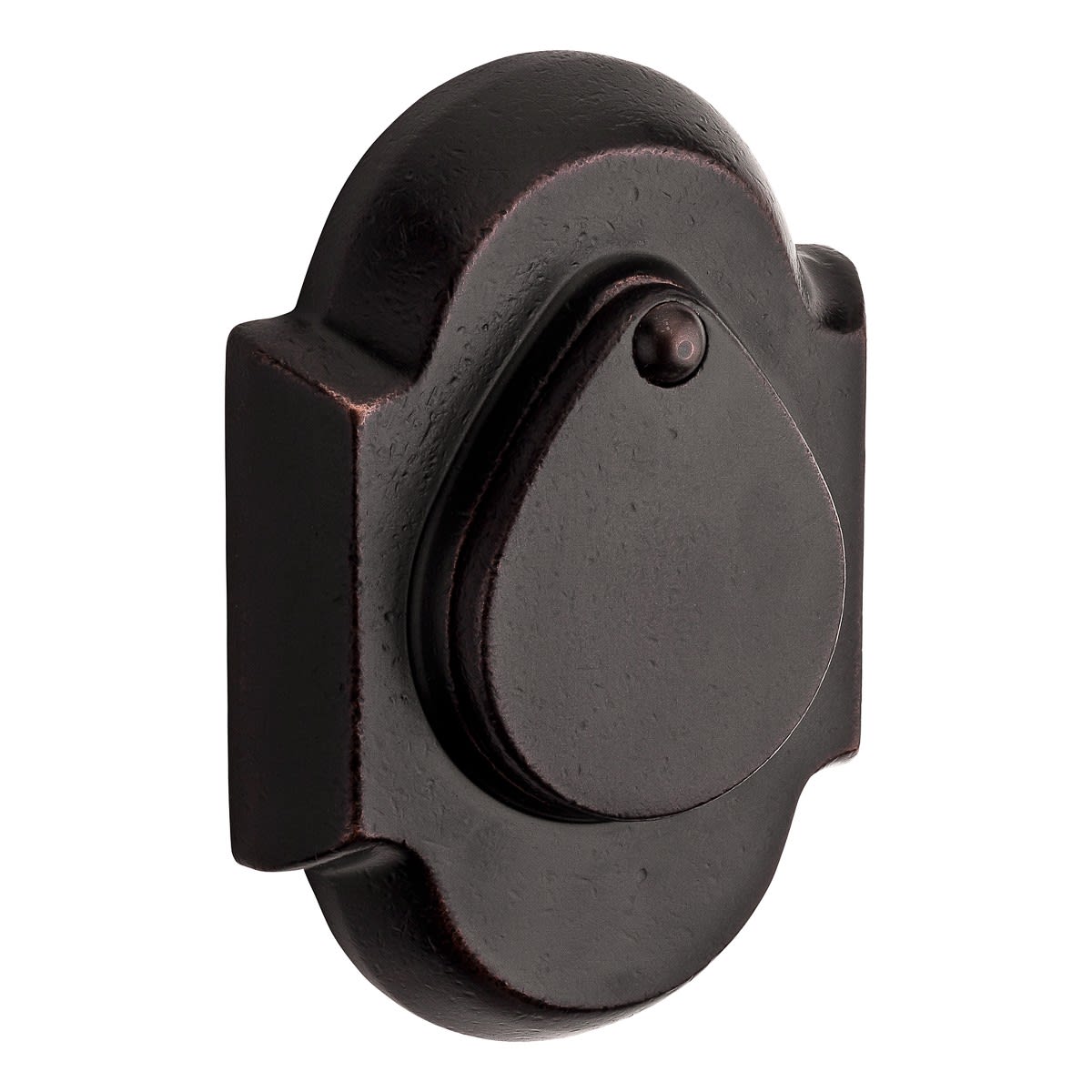

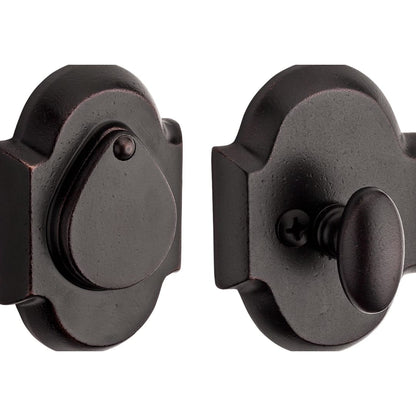

Rustic Arch Deadbolt from the Baldwin Reserve collection. Solid forged brass construction with a 1" throw brass bolt, tested to exceed ANSI/BHMA Grade 2 security.
Specifications
| Exterior trim | 3-5/8" × 2-11/16" |
| Interior trim | 2-11/16" × 3-7/16" |
| Exterior projection | 1-1/16" |
| Interior projection | 1-7/16" (single cylinder) · 1-1/16" (double cylinder) |
| Door preparation | 2-1/8" cross bore, 1" edge bore for latch |
| Door thickness | 1-3/4" to 2" standard |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Latch & strike | 6-way adjustable latch (6L) with dual strike kit (DS); full lip strike (FS) available on request |
| Cylinder | Baldwin 5-pin C-Keyway, keyed different. SmartKey C-Keyway (SMC) available on request |
| Handing | Not required |
| Warranty | Limited lifetime mechanical, 25-year finish |
Made to order; typically ships in 5–7 business days.
