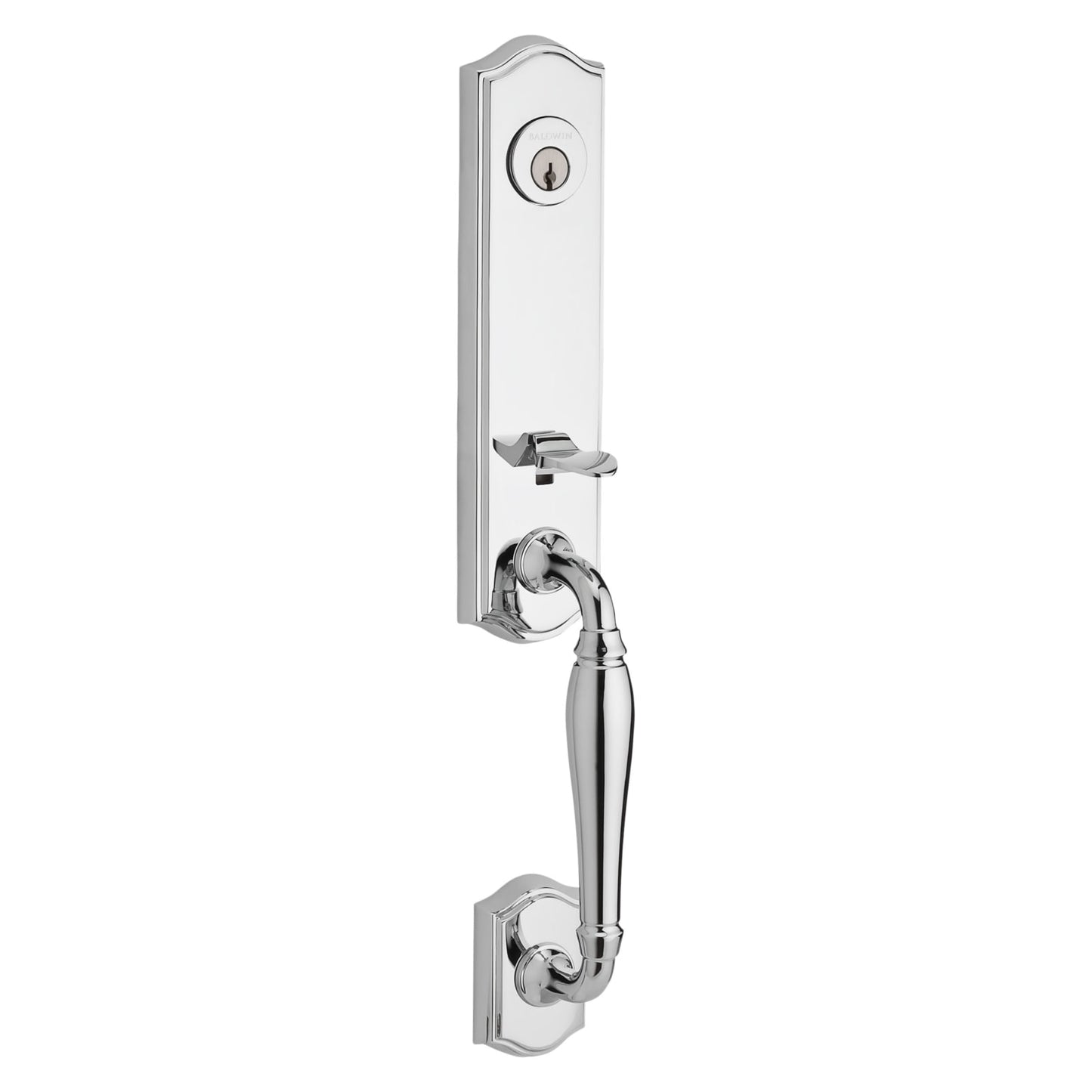

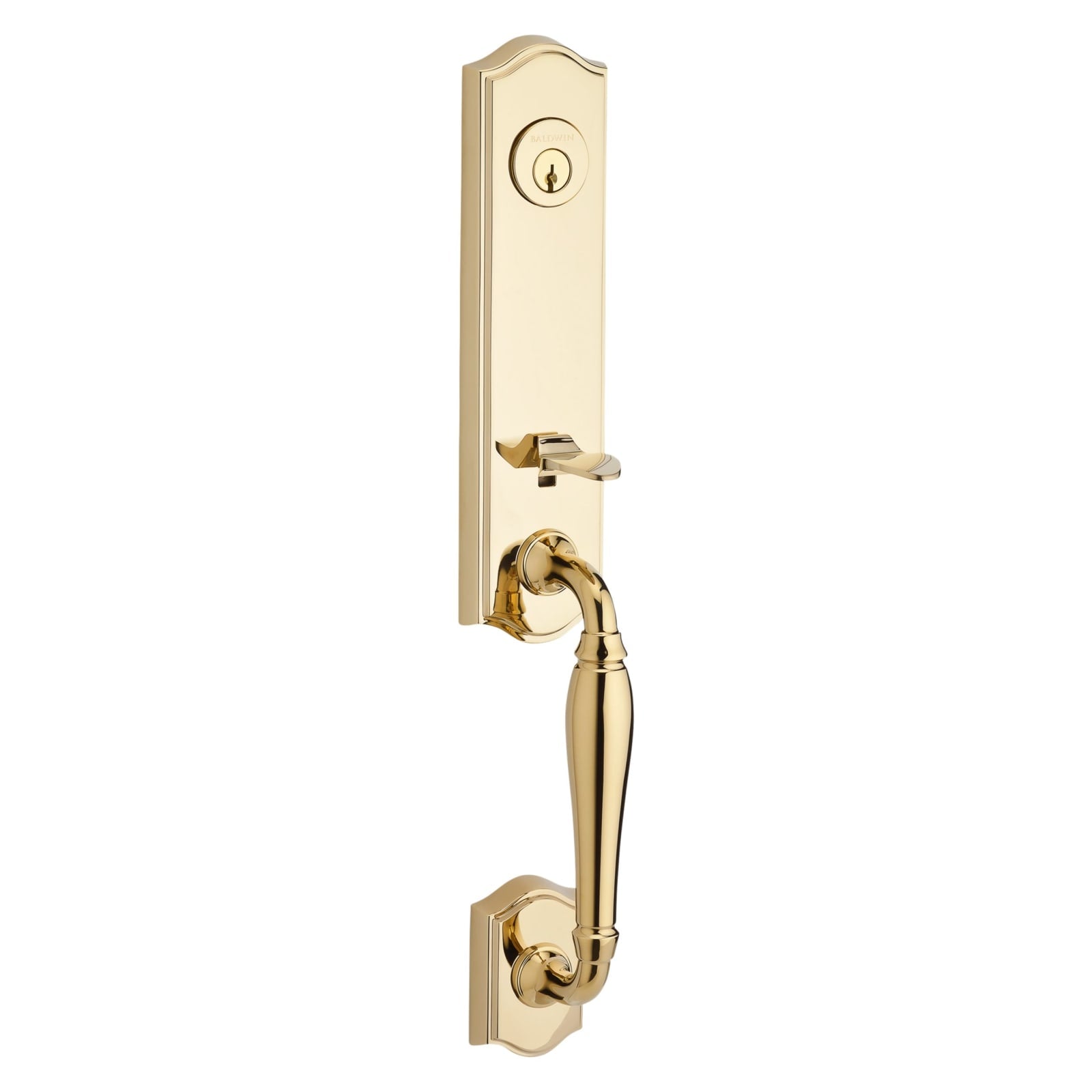

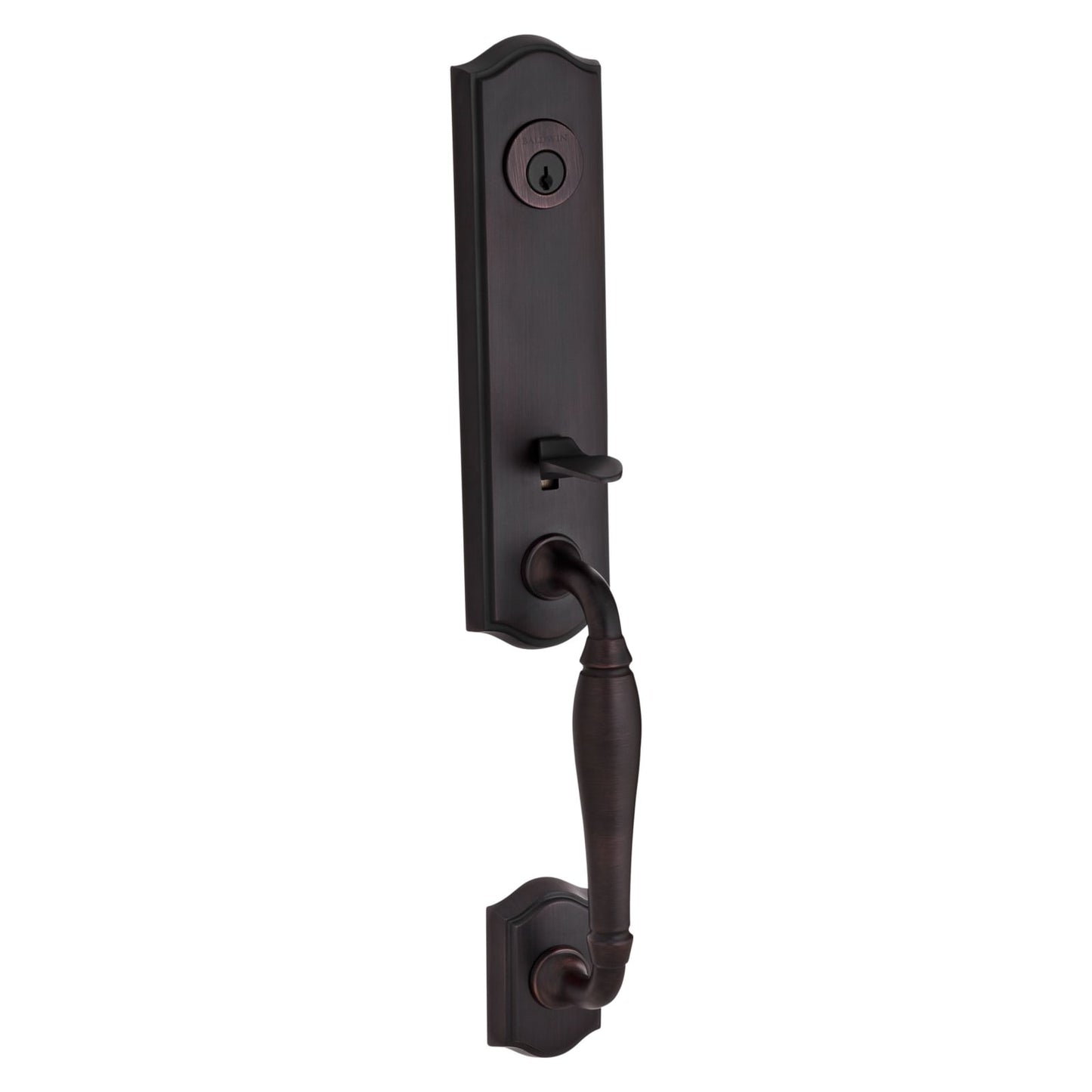

The Baldwin Reserve New Hampshire is a egress handleset built on a 3/4 escutcheon platform, available in 7 hand-crafted finishes.
Emergency egress handlesets retract the grip latch and deadbolt together from the inside in a single motion, which is what makes them suitable for bedrooms and any door that must open without hesitation.
Functions
| Emergency Egress | The deadbolt releases when the interior knob is turned or the interior lever pushed down, so the door opens in one motion. Not required residentially, but often specified for bedrooms, and sometimes required in multi-unit or hospitality settings. |
| Full Dummy | Thru-bolt mounted with no latch and no strike. Uses a single cylinder interior with a non-functioning turnpiece. For the inactive leaf of a double door. |
Interior trim
Choose any Baldwin Reserve knob or lever for the inside of the door, paired with its matching rose. This style is offered with 11 interior options across 4 rose or trim styles — select yours at checkout. Interior and exterior must share the same finish; you can mix finishes between the two sides of a door, but each side should match within itself.
Specifications
| Escutcheon type | 3/4 Escutcheon |
| Height (A) | 17-5/8" |
| Width (B) | 10-5/16" |
| Grip projection (F) | 3-1/16" |
| Bore spacing (E) | 8-13/32" |
| Cross bore | 2-1/8" for both deadbolt and grip |
| Edge bore | 1" for both latches |
| Centre to centre | 5-1/2" tubular bore |
| Door thickness | 1-3/4" to 2" standard; to 2-1/2" with Thick Door Service Part Kit |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Deadbolt | 1" throw brass bolt |
| Grip latch | 1/2" passage/privacy function bolt |
| Cylinder | Baldwin 5-pin C-Keyway standard; SmartKey re-key technology optional |
| Strike | Full lip strike to 1-3/4" door thickness |
| Construction | Solid forged brass |
| Lead time | Built to order, approximately 5–7 business days |
| Handing | Required only when the interior trim is a lever |
| Standard | ANSI/BHMA Grade 2 |
Installation and support
Made to order by Baldwin. Contact us for lead times and to confirm handing before we place the order.
