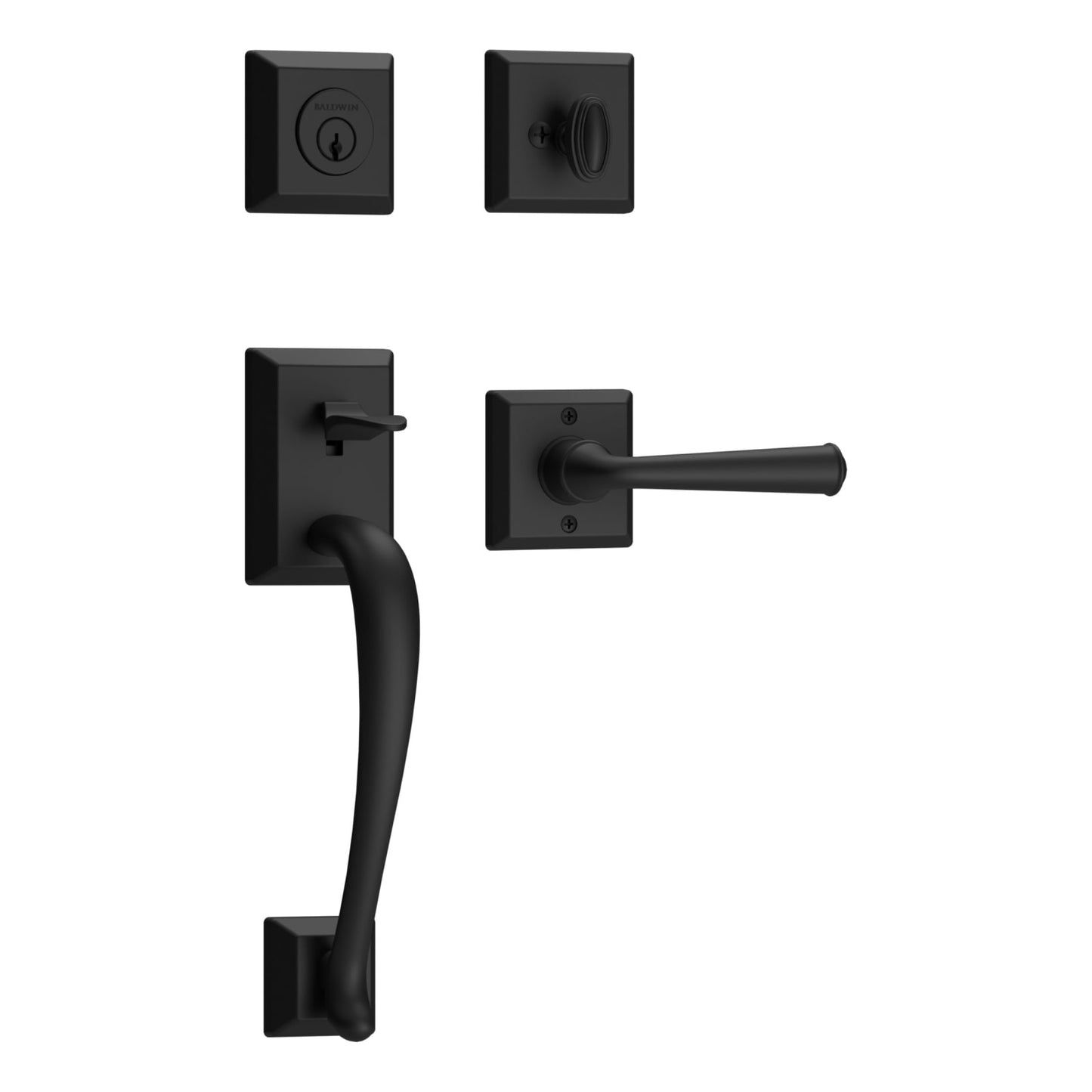

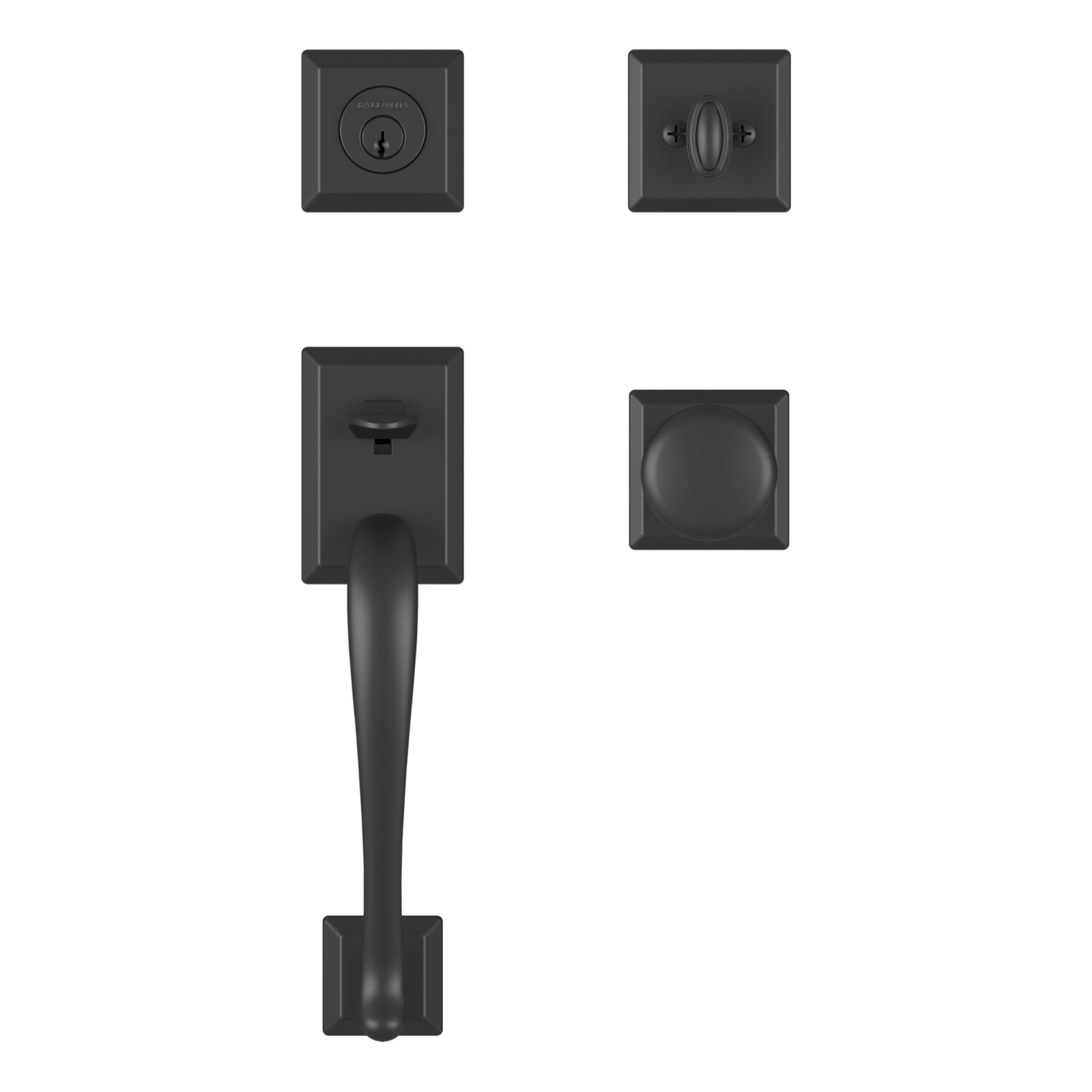

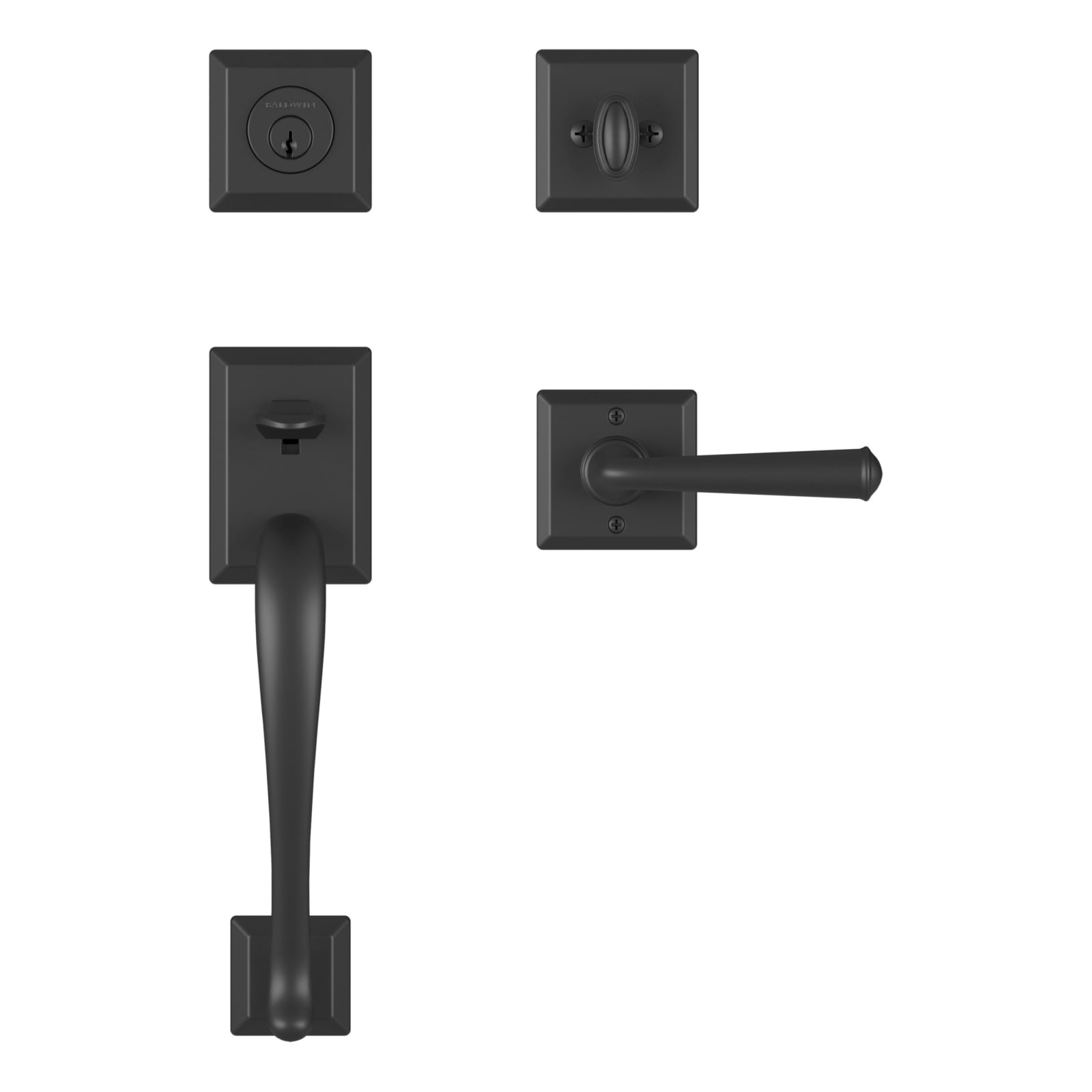

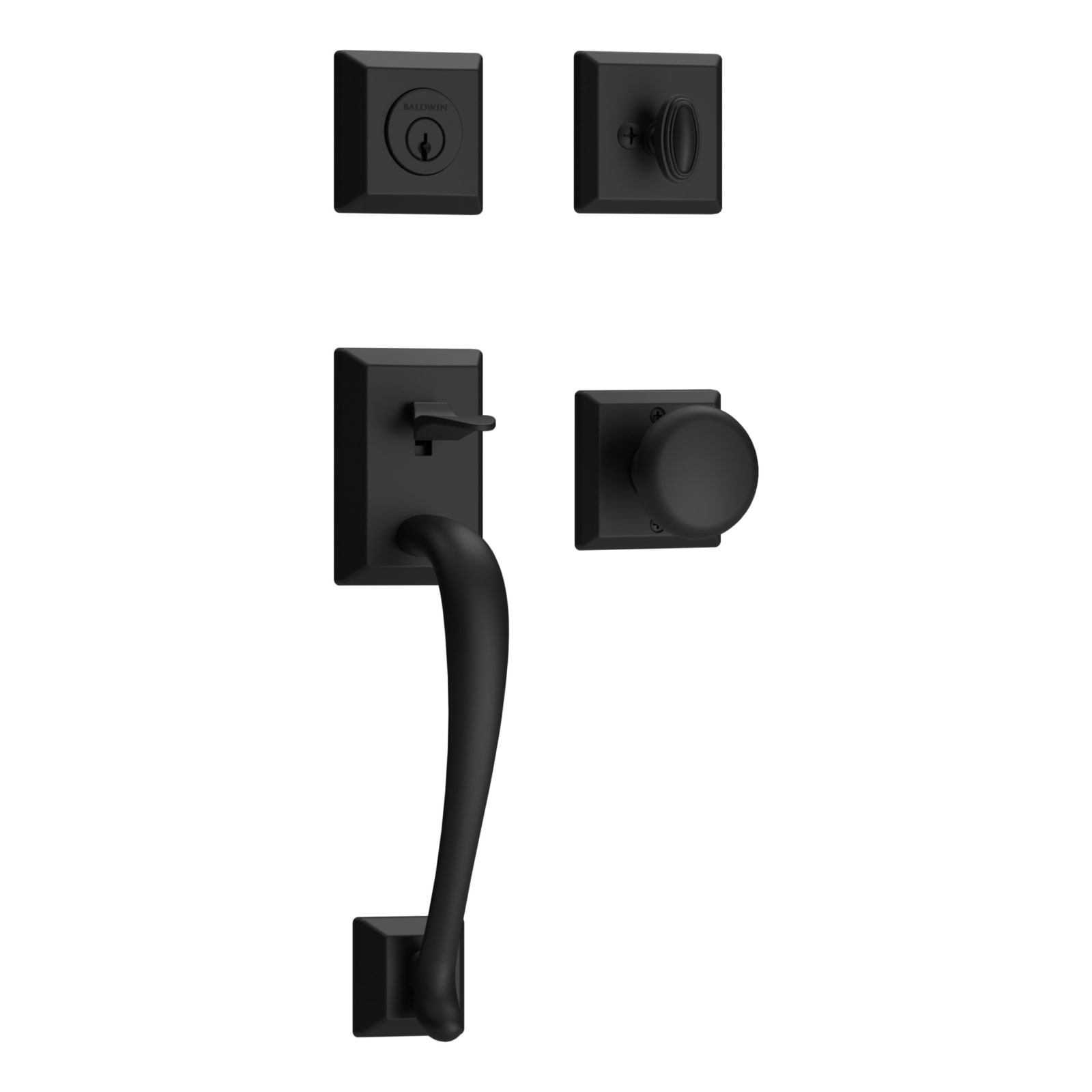

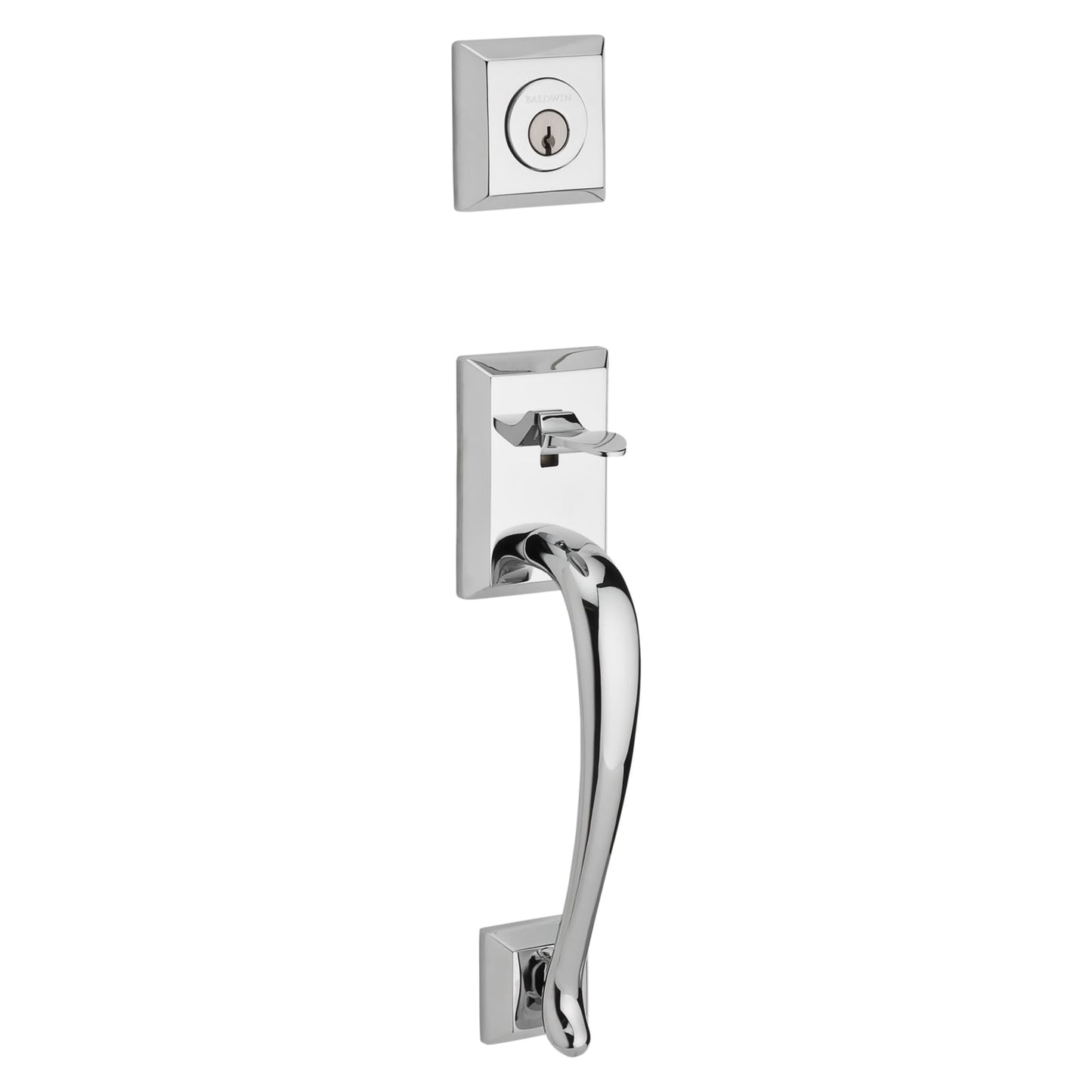

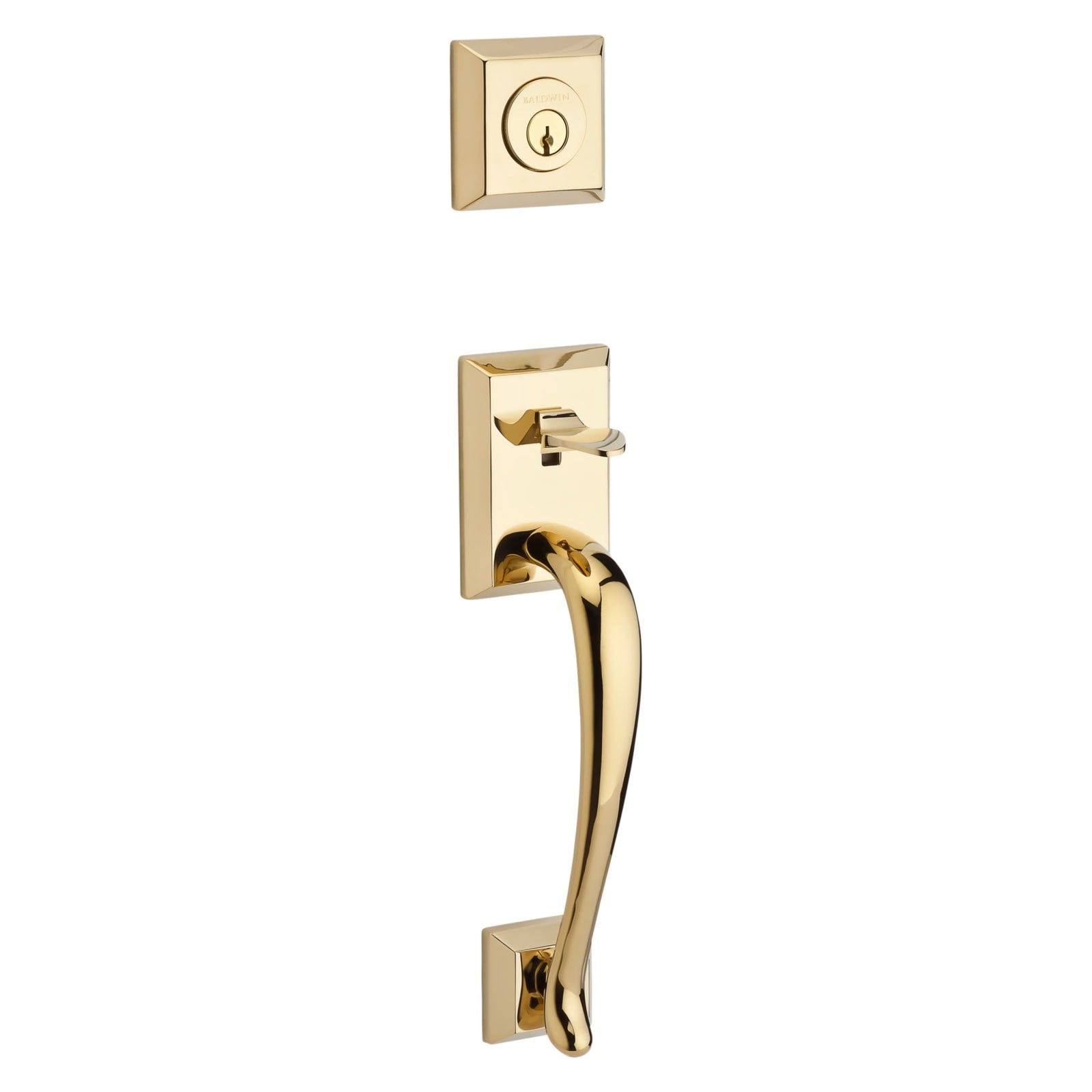

The Baldwin Reserve Napa is a sectional handleset built on a sectional platform, available in 8 hand-crafted finishes.
Sectional handlesets separate the grip from the deadbolt, so the two pieces sit independently on the door and the interior trim can be chosen freely.
Functions
| Single Cylinder | Keyed from outside with a thumbturn inside — the standard front door setup. |
| Double Cylinder | Keyed from both sides, for doors with glass within reach of the deadbolt. Rules vary by municipality — generally permitted where the room has another means of egress. Confirm with your local building department before specifying. |
| Full Dummy | Thru-bolt mounted with no latch and no strike. Uses a single cylinder interior with a non-functioning turnpiece. For the inactive leaf of a double door. |
Interior trim
Choose any Baldwin Reserve knob or lever for the inside of the door, paired with its matching rose. This style is offered with 14 interior options across 9 rose or trim styles — select yours at checkout. Interior and exterior must share the same finish; you can mix finishes between the two sides of a door, but each side should match within itself.
Specifications
| Escutcheon type | Sectional |
| Design style | Traditional |
| Height (A) | 11-1/2" |
| Width (B) | 2-11/16" |
| Grip projection (F) | 2-8/9" |
| Bore spacing (E) | 8-13/32" |
| Cross bore | 2-1/8" for both deadbolt and grip |
| Edge bore | 1" for both latches |
| Centre to centre | 5-1/2" tubular bore |
| Door thickness | 1-3/4" to 2" standard; to 2-1/2" with Thick Door Service Part Kit |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Deadbolt | 1" throw brass bolt |
| Grip latch | 1/2" passage/privacy function bolt |
| Cylinder | Baldwin 5-pin C-Keyway standard; SmartKey re-key technology optional |
| Strike | Full lip strike to 1-3/4" door thickness |
| Construction | Solid forged brass |
| Lead time | Built to order, approximately 5–7 business days |
| Handing | Required only when the interior trim is a lever |
| Standard | ANSI/BHMA Grade 2 |
Installation and support
- Single cylinder handleset instructions (PDF)
- Handleset drilling instructions (PDF)
- Baldwin Reserve limited warranty (PDF)
Made to order by Baldwin. Contact us for lead times and to confirm handing before we place the order.
