The Baldwin Reserve Arch lever pairs a 4-1/2" grip with your choice of 2 rose styles and 2 hand-finished options, so interior and exterior door hardware can be specified as a matched set or deliberately mixed.
Functions available: Entry, Passage, Privacy, Full Dummy, Half Dummy (Left), Half Dummy (Right)
Finishes: Dark Bronze, White Bronze
Specifications
| Lever length | 4-1/2" |
| Lever projection | 2-3/16" |
| Overall projection | 2-5/8" |
| Door preparation | 2-1/8" cross bore, 1" edge bore for latch |
| Door thickness | 1-3/8" to 2" standard; 2" to 2-1/2" with Thick Door Service Part Kit |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Latch bolt | 1/2" passage/privacy function bolt |
| Lever rotation | 55°–60° |
| Lock type | Tubular |
| Lever handing | Reversible (half dummy is handed) |
| Design style | Rustic |
| Standard | ANSI/BHMA Grade 2 |
Rose dimensions
| Rose | Width | Height | Shape |
|---|---|---|---|

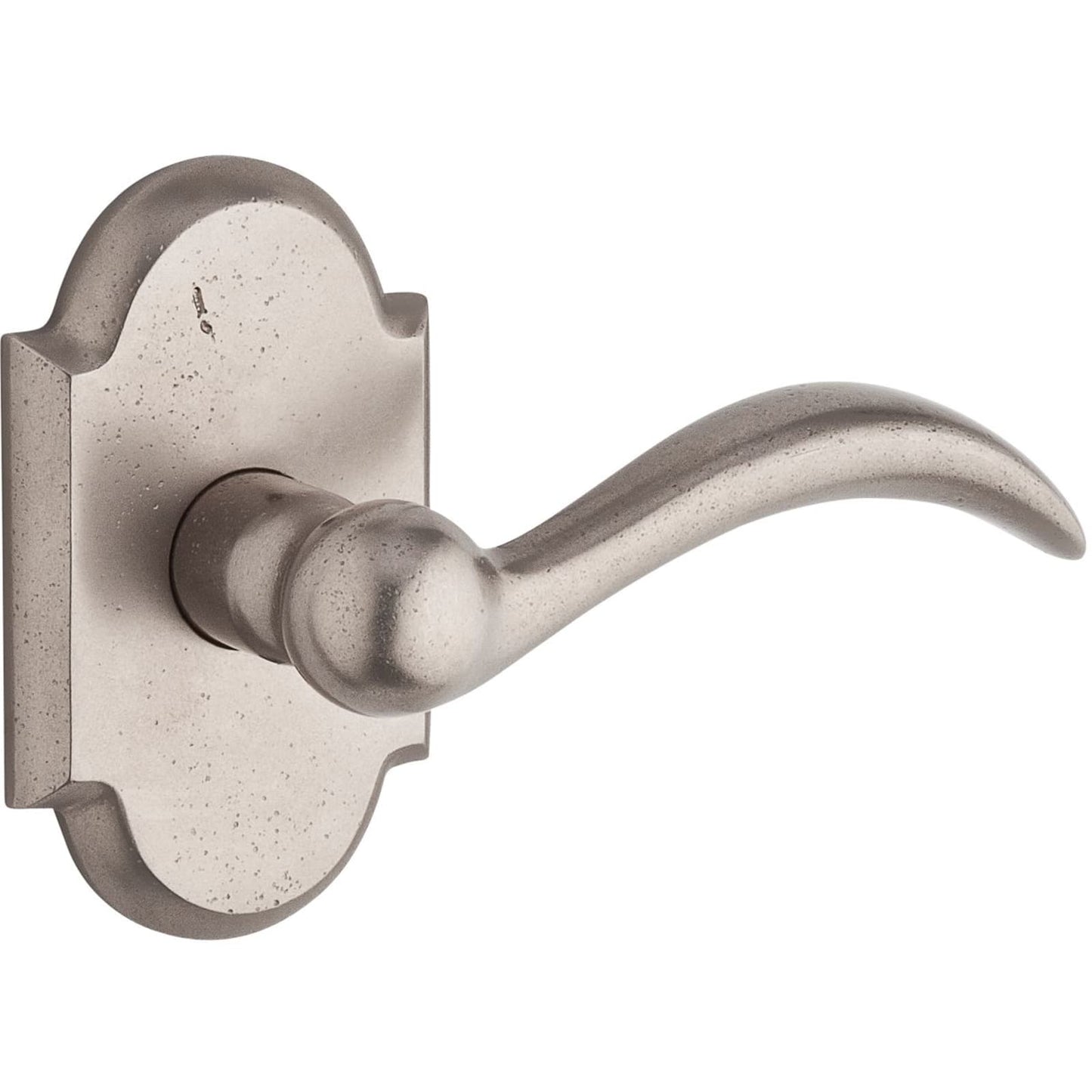

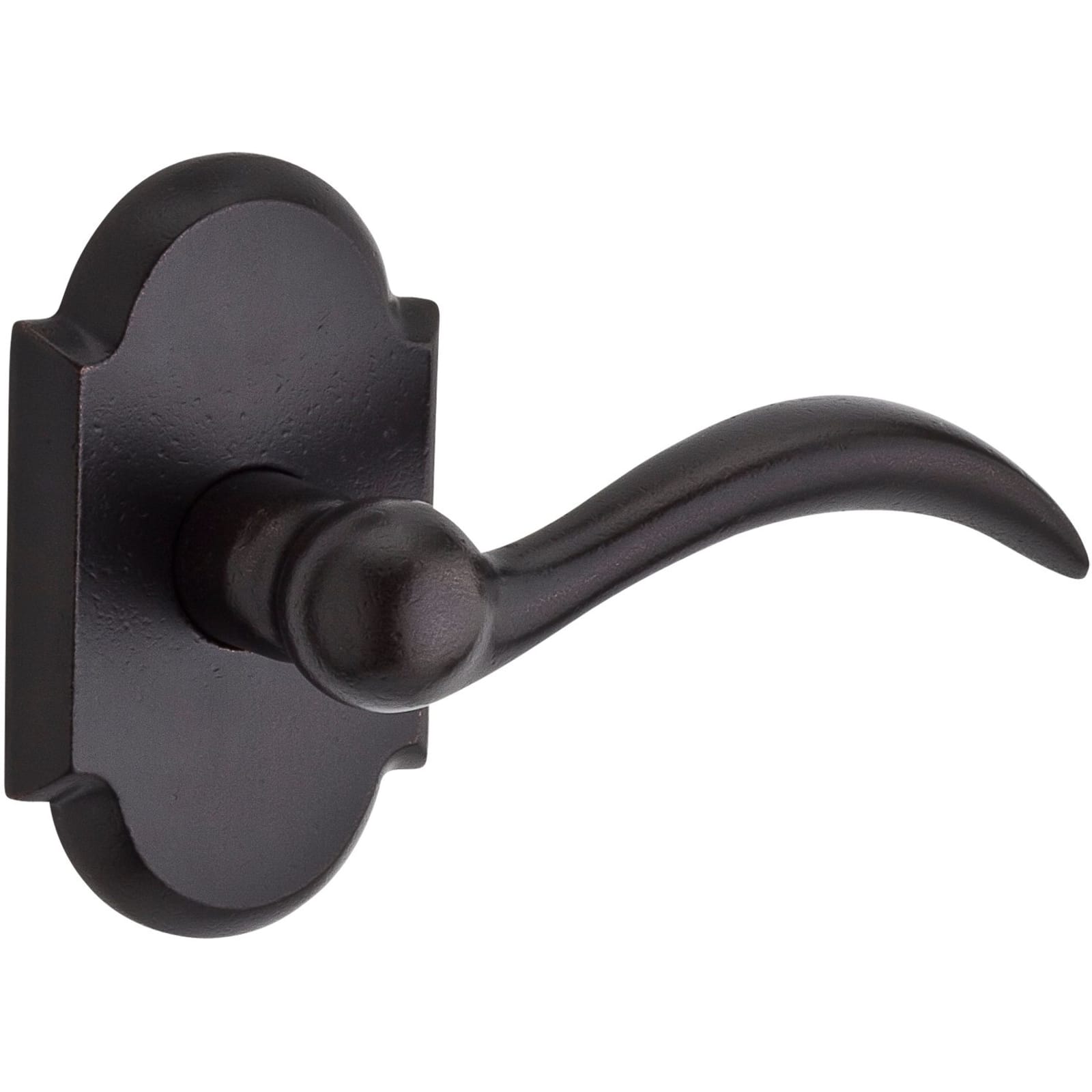

| Rustic Arch Rose | 2-11/16" | 4-1/2" | Arch |

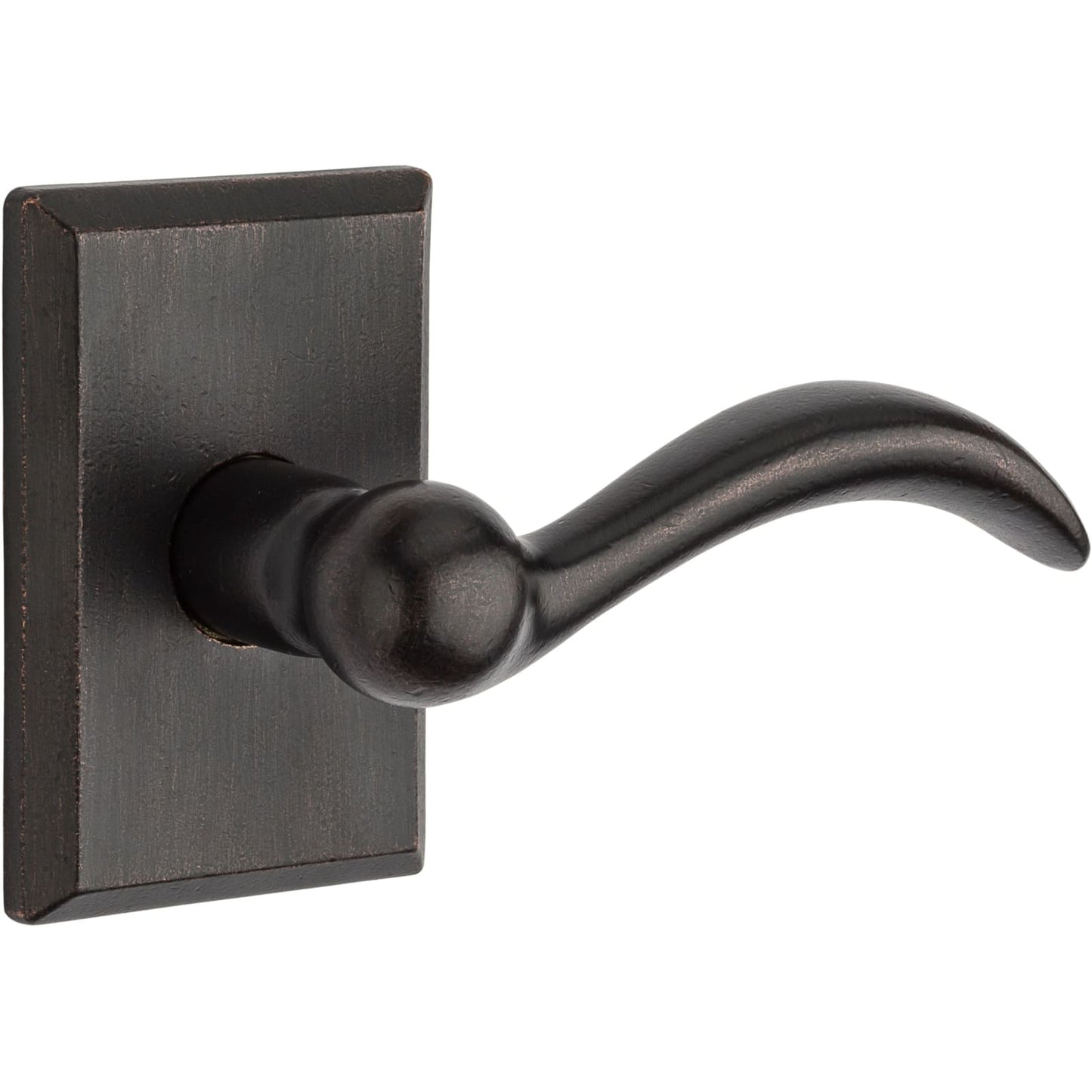

| Rustic Square Rose | 2-5/8" | 4" | Square |
Handing: Half dummy levers are surface mounted and must be handed, so left and right are listed separately under Function. Facing the door from outside, hinges on the left is a left-hand door. All other functions are field reversible and ship right-hand (R).
Keying: Entry sets ship with a Baldwin C-Keyway pin & tumbler cylinder, keyed different. SmartKey re-key technology is available on request. Master keying and construction keying are not offered through this store.
Installation and support
- Entry knob or lever instructions (PDF)
- Privacy knob and lever instructions (PDF)
- Full dummy knob and lever instructions (PDF)
- Baldwin Reserve limited warranty (PDF)
Made to order by Baldwin. Contact us for lead times on large or mixed-finish orders.
